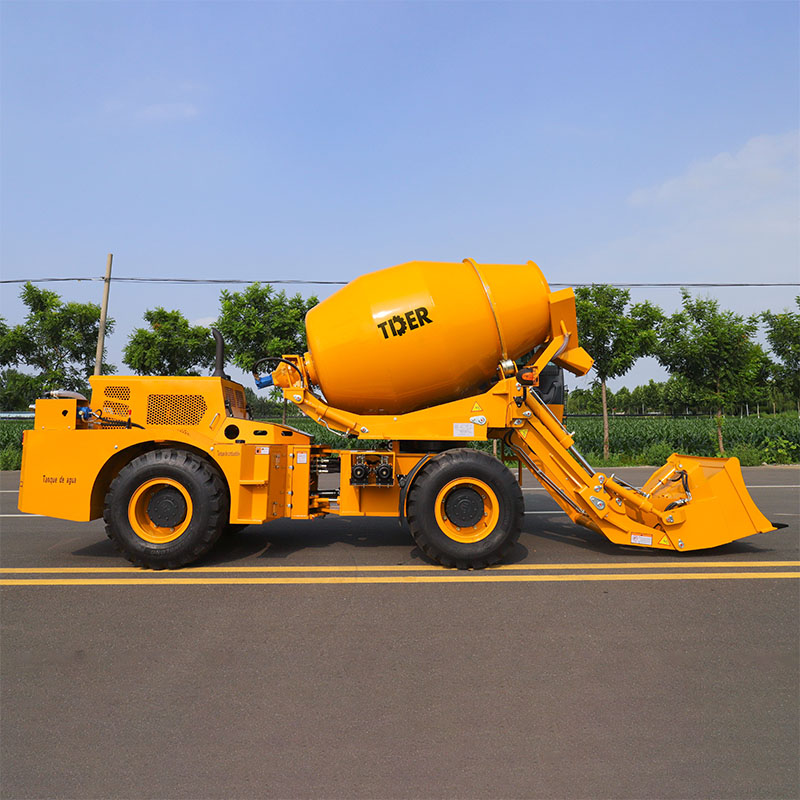

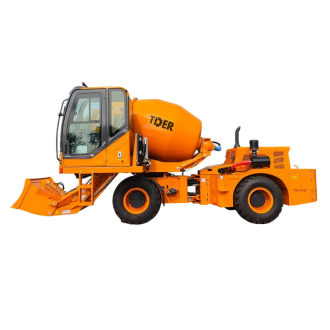

2.6m³ Concrete Mixer Truck
TCM26
Features
Engine Options Tuned for Complex Working Conditions
The TCM26 supports Cummins, Weichai Deutz, and Yuchai Euro 5 engine configurations, providing adaptable power solutions for different environments such as high-altitude regions, hot climates, and mixed road conditions. This flexibility ensures stable performance and reliable output across diverse global construction markets.

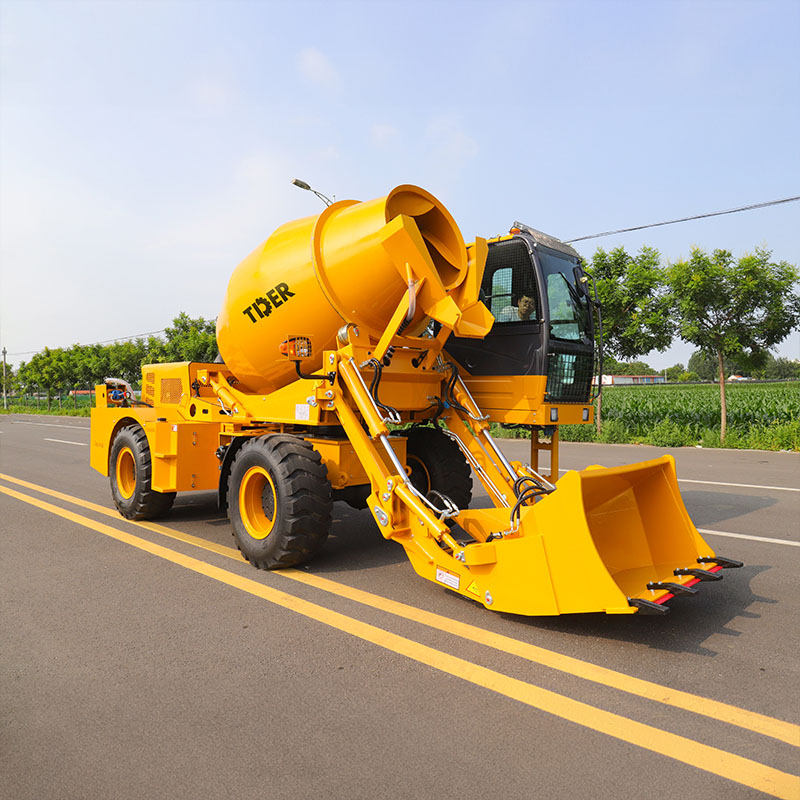

Reinforced Bucket for High-Capacity Loading
The enlarged bucket capacity allows more material to be loaded per cycle, reducing hauling frequency and improving overall productivity. The reinforced bucket teeth provide strong penetration into hard materials such as crushed stone, ore, and construction waste, accelerating loading efficiency. The bucket is made of high-strength manganese steel, offering excellent wear resistance and impact durability for mining, quarry, and construction applications.
Synchronized Rotation for Better Discharge Visibility
The cab rotates together with the mixing drum (±90° / 180° working range), allowing the operator to clearly monitor the discharge process. This improves unloading accuracy, reduces manual leveling work, and helps achieve more consistent concrete placement.
Heavy-Duty Drive System for Stable Performance
The drivetrain combines a military-grade reducer with a plunger motor featuring an integrated flow distribution and output shaft design, delivering higher hydraulic precision and mechanical efficiency. Advanced shaft sealing improves backpressure resistance, while the geared rotor structure and optimized spline design extend service life. Dual rolling bearings at both ends enhance lateral load capacity, ensuring stable performance under heavy-duty transport conditions.
Hydraulic Cylinder Protection for Longer Service Life
Equipped with cylinder protection sleeves, the system effectively prevents dust, metal debris, and coolant contamination from entering the hydraulic cylinders. This reduces wear and corrosion on piston rods and internal components, maintaining long-term cleanliness, sealing performance, and operational reliability.
Specifications
| Output per lot | 2.6cubic metres |
| Drum rotation | discharge port height 1.65 M, horizontal rotation 270 degrees, tank can be raised and lowered |
| Capacity | Up to 4 batches per hour, 10.4cubic hours |
| Engine | Yuchai 4102 supercharged, diesel, water cooled, 4 cylinder, 2200 rpm |
| Rated power | 77.3KW |
| Drive mode | The engine is directly connected to the280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive |
| Climb | 40 degrees |
| Speed | dual altitude, low speed 0-25 kph, high speed 0-40 kph |
| Driver's seat | Widen luxurious cab, anti-rollover, anti-falling object type |
| Hydraulic system | Open type oil, two gear pumps to participate in the work |
| Joystick | Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank |
| Bucket | 0.6 cubic, hydraulic gate |
| Clay groove | equipped with two 150 cm detachable chute to increase discharge length |
| Water Supply System | self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine |
| Brake | Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper |
| Steering | Hydraulic articulated steering |
| Tyres | 12R22.5 steel wire tyres |
| Power System | 24V |
| Fuel tank / Water tank | 1 * 600 l water tank, 120 l diesel fuel tank, 120 l hydraulic fuel tank |
| Weight | 7000 kg |
| Length, width, height / wheelbase / Wheelbase | 7150mm * 2650mm * 3000mm * 2900mm * 2100mm |
| Turning radius | 2800 mm |
| Other | Q345 manganese steel frame, luxury cab, driving impact, cement bucket |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
FAQs
Related Products
-
Concrete Mixer Pump for Construction- Output (High/Low):
11/20 m³/h
- Pressure (High/Low):
8/4 MPa
- Pumping Distance (H/V):
300/120 m
- Output (High/Low):
-
Concrete Pump with Diesel Engine- Output (High/Low):
16/30 m³/h
- Pressure (High/Low):
8/4 MPa
- Pumping Distance (H/V):
350/120 m
- Output (High/Low):
-
Concrete Pump for High-Rise and Infrastructure- Output (High/Low):
23/42 m³/h
- Pressure (High/Low):
13/6.3 MPa
- Pumping Distance (H/V):
550/180 m
- Output (High/Low):
-

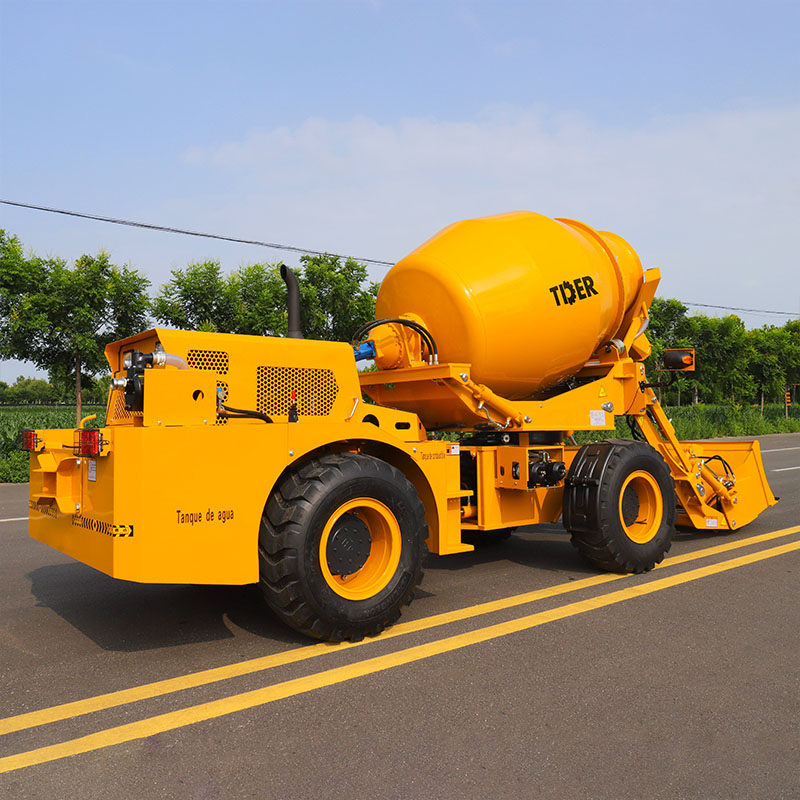

Small Concrete Mixer Truck with 270° Rotation- Max Discharge:
