Concrete Mixer And Pump

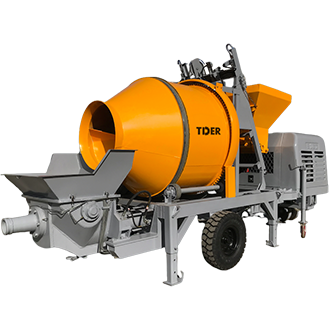

TCP40-13-450R
特征
One Machine, One Continuous Concrete Workflow
The TCP40-13-450R combines concrete batching, mixing and pumping in one machine, allowing concrete to be produced and delivered directly at the job site. This reduces the coordination required between separate mixers, pumps and transport equipment, helping crews keep the pouring process moving with fewer interruptions.
Higher Productivity from Simultaneous Mixing and Pumping
Because mixing and pumping can take place at the same time, the machine reduces waiting between concrete preparation and placement. With a 20 m³/h mixing output and up to 40 m³/h theoretical pumping capacity, it is designed to keep concrete flowing continuously rather than relying on separate stages of operation.
Concrete Delivery Where Conventional Equipment Struggles
The machine can pump concrete over 100 m vertically or 300 m horizontally, making it possible to place concrete in elevated, deep or remote sections of a project without moving the main machine directly to the pouring point. This is particularly useful when access for conventional concrete equipment is restricted.
Compact Footprint for Hard-to-Reach Job Sites
The integrated 4.5-ton machine combines mixing and pumping functions within a 5.2 m-long, 2.28 m-wide package. Instead of requiring separate machines and additional working space, the TCP40-13-450R concentrates the concrete production and delivery process into one compact unit, making it easier to deploy on narrow, rural, mountainous and dispersed sites.
Lower Equipment and Labor Requirements
By combining two key concrete operations in one machine, the TCP40-13-450R can reduce the need to purchase or rent separate mixing and pumping equipment and simplify on-site coordination. Fewer machines and fewer supporting personnel can mean lower equipment investment, less site congestion and reduced labor requirements.
规格
| Whole Machine Performance | Maximum Theoretical Concrete Output (Low / High Pressure) | m³/h | 40 |
| Maximum Concrete Pumping Pressure (High / Low Pressure) | MPa | 13 | |
| Concrete Valve Type | — | S Valve | |
| Concrete Cylinder Diameter × Stroke Length | mm | Φ160 × 1000 | |
| Hopper Capacity × Loading Height | L × mm | 450 × 1000 | |
| Outlet Inner Diameter | mm | Φ125 | |
| Delivery Pipe Inner Diameter | mm | Φ100 | |
| Maximum Aggregate Diameter | mm | Pebble: 35; Gravel: 40 | |
| Maximum Delivery Distance (Vertical / Horizontal) | m | 100 / 300 | |
| Lubrication System | — | Automatic Electric Lubrication | |
| High / Low Pressure Conversion | — | No | |
| Remote Control | — | Wireless Remote Control | |
| Power System | Diesel Engine | — | R4105IZD (Weifang Huadong) / WP4.1D80E201 (Weichai) |
| Rated Power | kW | 66 (Weifang Huadong) / 72 (Weichai) | |
| Rated Speed | rpm | 1800 | |
| Rated Fuel Consumption | L/h | 12 | |
| Hydraulic System | Hydraulic Circuit Type | — | Open Circuit |
| Main Oil Pump Displacement | mL | 112 | |
| Pumping System Pressure | MPa | 31 | |
| Mixing System Pressure | MPa | 12 | |
| Hydraulic Tank Capacity | L | 160 | |
| Other Parameters | Overall Dimensions (L × W × H) | mm | 5200 × 2280 × 2900 |
| Host Machine Weight | kg | 4500 | |
| Total Weight | kg | 6000 |
*注：由于产品不断升级改进，规格和配置如有变更，恕不另行通知。所有信息仅供参考，部分功能为选配。请联系我们的国际销售团队进行确认。最终规格和配置以双方签署的正式合同为准。

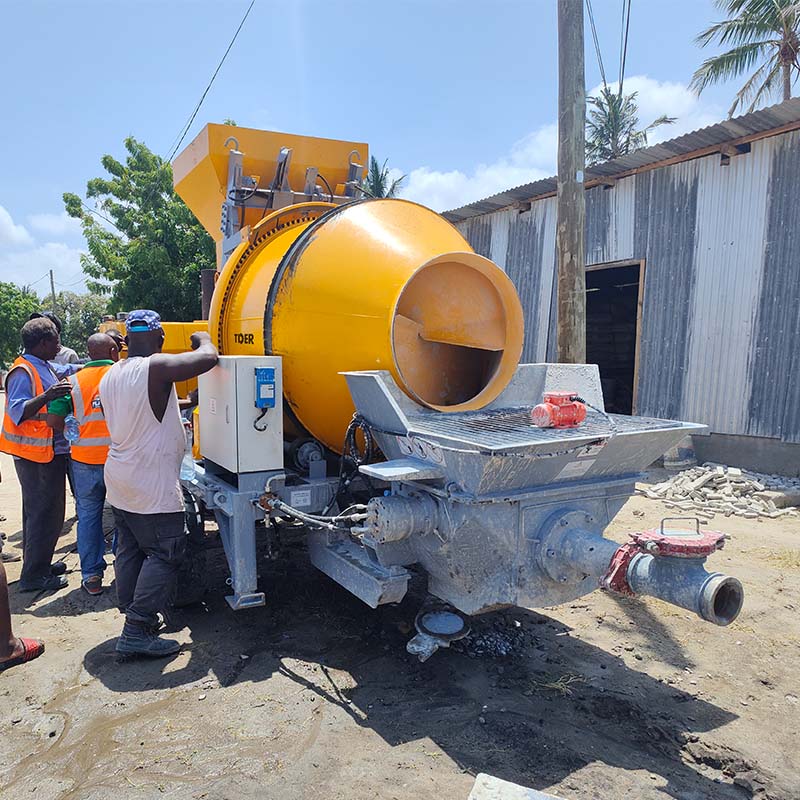

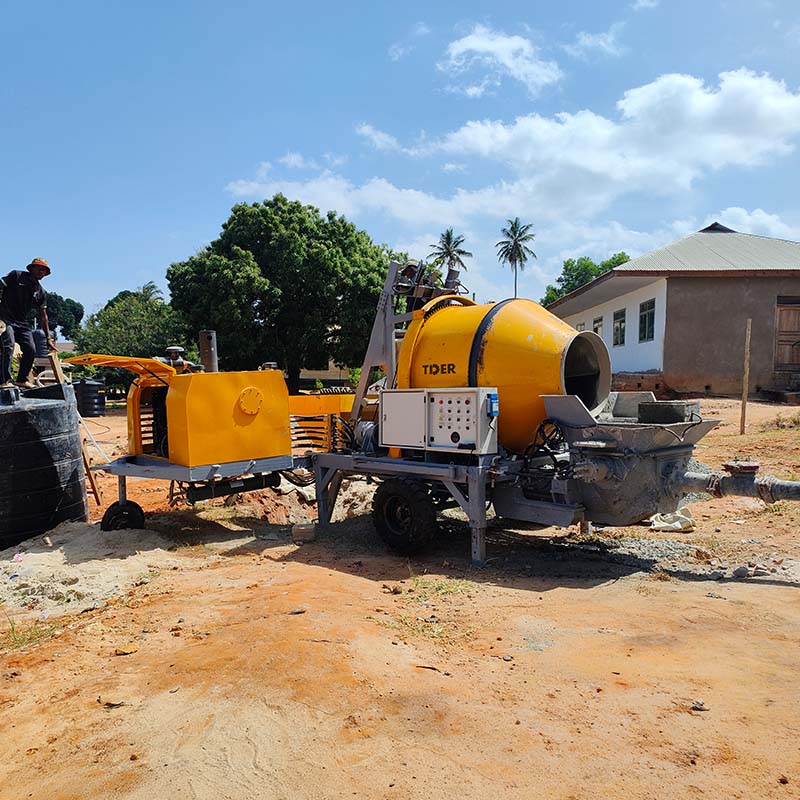

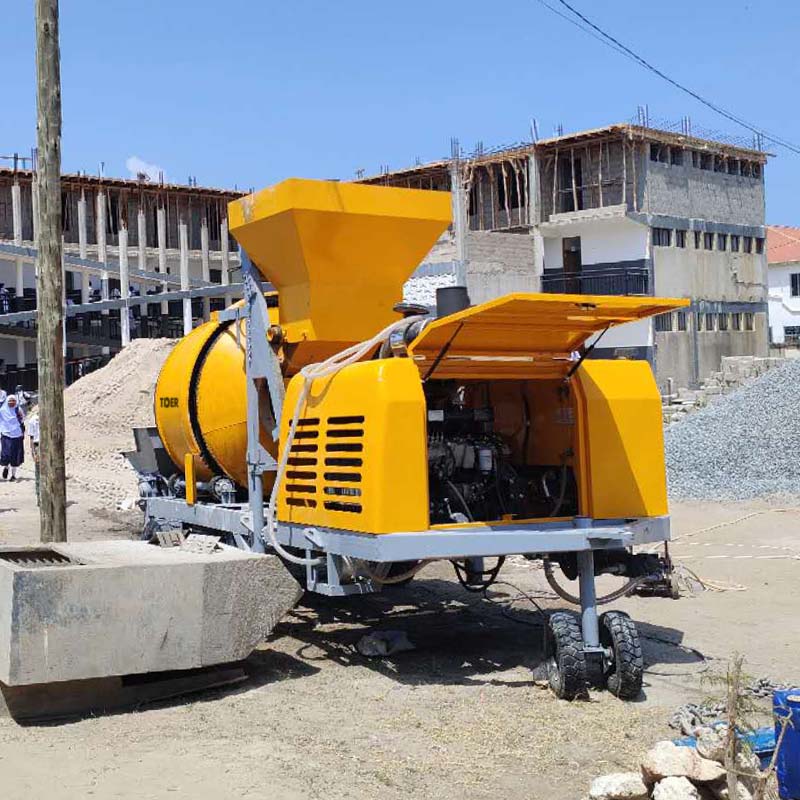

产品展示
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
