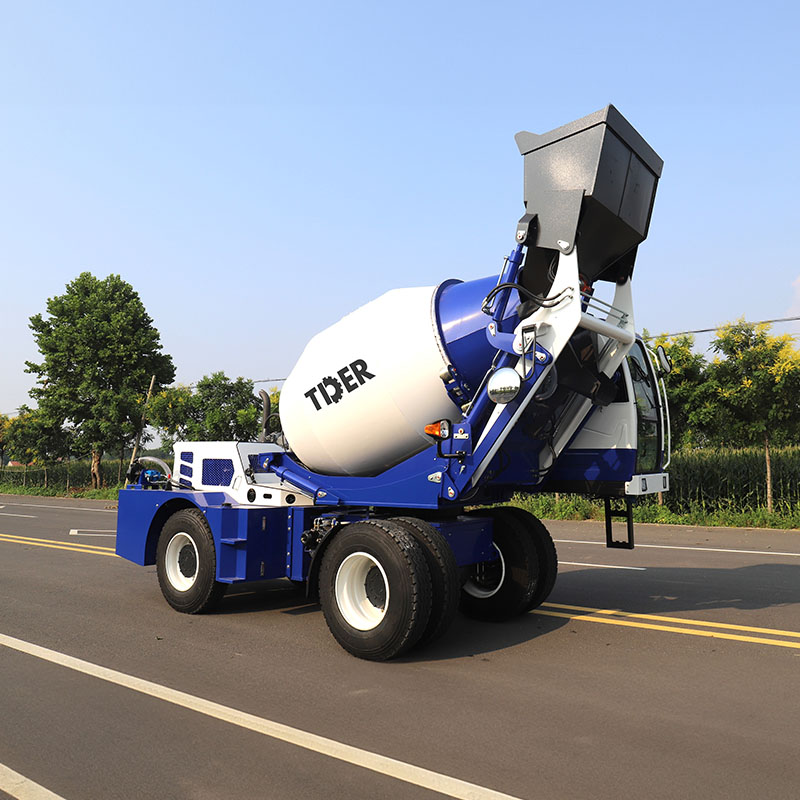

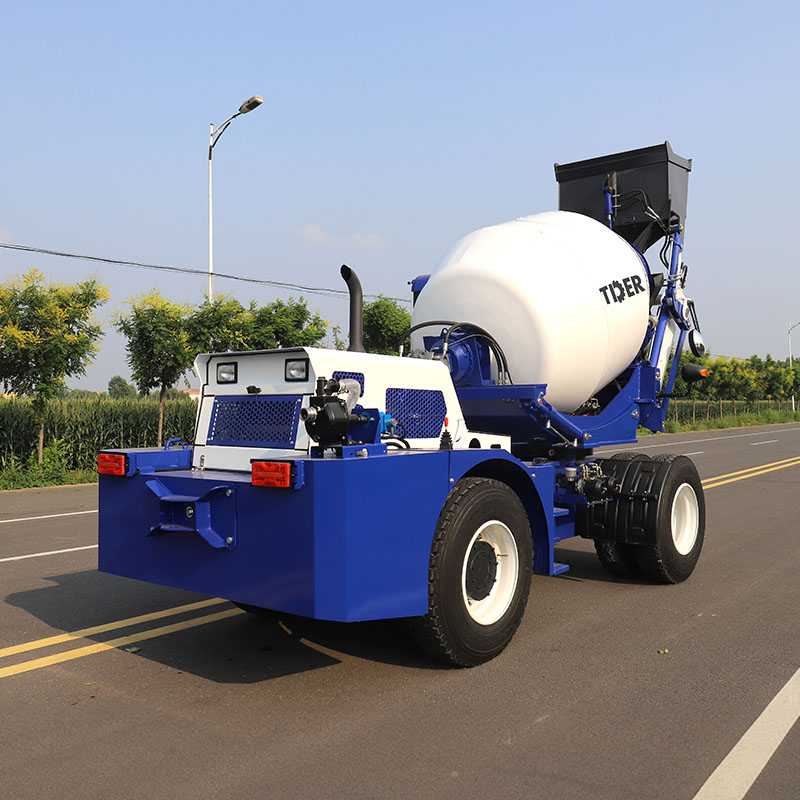

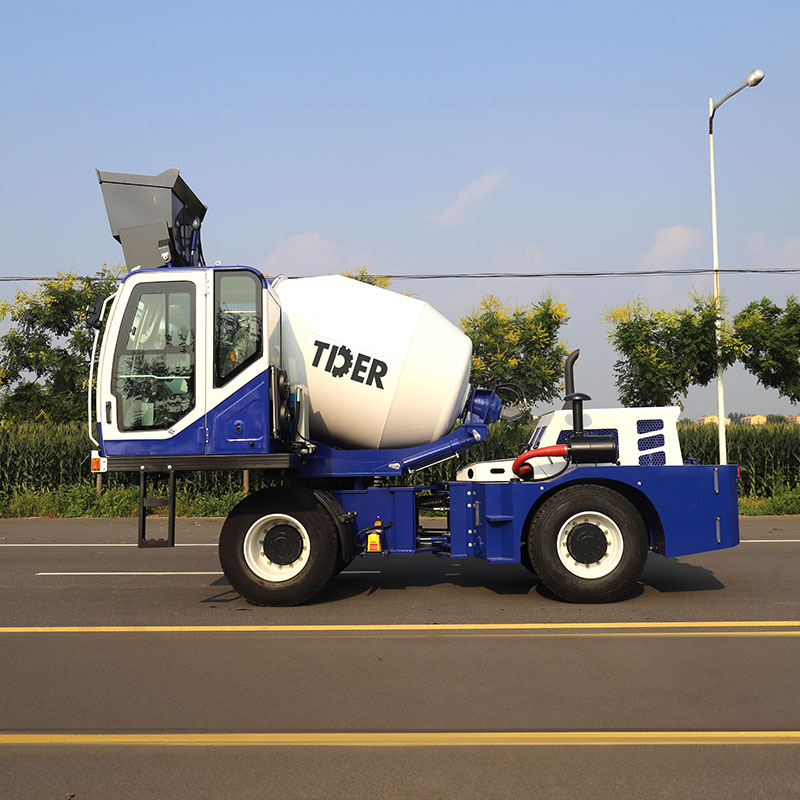

Name: 3.5m³ Concrete Mixer Truck For Sale for Road Construction
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Flexible Engine Options for Global Market Adaptability

The TCM35 supports multiple engine configurations including Cummins, Weichai Deutz, and Yuchai Euro 5 engines, providing flexible compliance with different emission standards and ensuring stable power output across diverse operating markets.

Bi-Directional Driving for High-Efficiency Operation

The cab can rotate 180° to enable reverse driving without turning the vehicle, allowing quick direction changes in narrow sites, mountain roads, and restricted working areas. This improves operational efficiency and makes the machine suitable for complex and harsh jobsite conditions.

Optimized Mixing Drum for Faster Loading and Discharge Efficiency

The drum is constructed from manganese steel with epoxy anti-corrosion coating. Featuring a 6-blade, 3-spiral, 8-paddle internal design, it improves material flow efficiency, enabling faster loading and more efficient discharge performance.

Heavy-Duty Drivetrain with Reinforced Axles for Long-Distance Reliability

Equipped with a dedicated mixer truck axle system, the reinforced transmission shaft and enlarged drivetrain structure effectively reduce overheating during long-distance transport, ensuring stable and reliable performance under continuous operation.

Luxury Cab with Enhanced Comfort & Advanced Pilot Control System

The reinforced ROPS-style cab features a wider interior space (+12 cm compared to standard models), shock-absorbing seat, and heating/cooling air conditioning system for improved operator comfort. The hydraulic pilot control system reduces operating force, enabling smoother and more precise control while reducing fatigue in complex operations.

360° Surround View & Full LED Lighting System for Safe Operation

Dual ultra-wide-angle HD cameras provide full vehicle surroundings, eliminating blind spots compared to traditional mirrors. Combined with high-intensity LED lighting and roof warning lights, the system ensures safe operation in low-visibility environments.

Centralized Lubrication Design for Easy Maintenance

The greasing points are relocated to the front chassis for easier daily maintenance access, reducing downtime and improving overall service convenience.

Specifications

Output Per Lot	3.5 cubic metres
Drum Rotation	Discharge port height 1.8 meters, cab and tank horizontal rotation 270 tank can be raised and lowered
Capacity	Up to 4.5 batches per hour, 15.5 cubic hours
Engine	Yuchai Power Ycd4j22t Foshan 16, diesel, water-cooled, 4 cylinders, 2600 RPM, rated power 85KW
Drive Mode	The engine is directly connected to the 280 torque converter, through the drive shaft to the transmission with dual high and low speed through the drive shaft connected to the front and rear axles to achieve 4-wheel drive
Climb	40 degrees
Speed	dual altitude, low speed 0-25 kph, high speed 0-40kph
Driver'S Seat	Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat
Hydraulic System	Open type oil, plunger type motor, two gear pumps to participate in the work
Joystick	Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank
Bucket	0.6cubic, hydraulic gate
Clay Groove	Equipped with one 150CM Removable Chute to increase the length of discharge
Water Supply System	Self-priming driven pump, 24V self-timing Centrifugal pump, 24V car wash machine
Braking	Use Small Servo pump on independent double circuit, use single wheel 4-piston plus double brake caliper
Steering	Hydraulic articulated steering
Tire	12R-22.5 steel wire high pressure vacuum tire
Power System	24V
Fuel Tank / Water Tank	1 * 800 l water tank, 130 l diesel fuel tank, 130 l hydraulic fuel tank
Weight	8,100 kg
Length, Width, Height / Wheelbase / Wheelbase	7100mm * 2750mm * 3300mm * 2903mm * 2100mm
Turning Radius	2,900 mm
Other	Q345 manganese steel frame, excavator luxury cab, driving impact, cement bucket, air conditioning

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
