4 Ton Road Roller
TRC204P
Features
Combination Roller Design for Superior Asphalt Compaction
The front vibrating steel drum combined with four rear smooth pneumatic tires delivers the benefits of both vibratory and pneumatic rollers in a single machine. This dual-compaction design improves asphalt density, surface finish, and sealing performance while reducing the need for multiple compaction passes.
French Poclain Hydraulic System for Reliable Traction
Powered by genuine French Poclain travel pump and low-speed high-torque drive motor, the fully hydraulic drive system provides efficient power delivery, strong climbing performance, and dependable operation under continuous road construction and asphalt compaction applications.
All-Wheel Drive Stability System
The full hydraulic all-wheel drive configuration enhances climbing capability and machine stability on slopes, uneven terrain, and newly paved surfaces. The tire-assisted rear axle further improves ride comfort and vibration absorption during operation.
Precision Asphalt Surface Protection System
The vibrating steel drum is equipped with scraper plates and an electric water spray system, helping prevent asphalt adhesion while maintaining consistent drum cleanliness. The intermittent spraying function improves water efficiency and supports higher-quality asphalt finishing results.
Compact Articulated Design for Urban Road Work
The compact machine structure combined with hydraulic articulated steering enables flexible operation in restricted construction areas, municipal roads, parking lots, sidewalks, and other confined paving environments where larger rollers are less efficient.
Operator Comfort and Safety Platform
The machine features stepless speed control, electro-controlled front and rear wheel watering systems, and a ROPS sunshade canopy, providing comfortable operation, improved visibility, and enhanced operator protection during long working hours.
Specifications
| Operating Mass | kg | 3800 |
| Static Linear Load (Front/Rear) | N/cm | 150/200 |
| Vibration Amplitude | mm | 0.5 |
| Centrifugal Force | kN | 30 |
| Vibration Frequency | Hz | 50 |
| Travel Speed | km/h | 0–12 |
| Gradeability | % | 25 |
| Steering Angle | ° | ±26 |
| Overall Dimension (L×W×H) | mm | 2900×1400×2580 |
| Drum Diameter | mm | 700 |
| Drum Width | mm | 1300 |
| Rear Tire Quantity | pcs | 4 |
| Rear Tire Specification | — | 7.50-15 |
| Wheelbase | mm | 2010 |
| Diesel Power | kW | 26.5 |
| Diesel Model | — | ZN390B |
| Water Tank Capacity | L | 200 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
FAQs
Related Products
-
180HP Motor Grader for Road Construction and Earthmoving- Operating Weight:
16000 kg
- Engine Power:
132 kW
- Blade Width:
3965 mm
- Operating Weight:
-
220HP Motor Grader for Sale with Cummins Engine- Operating Weight:
16900 kg
- Engine Power:
160 kW
- Blade Width:
3965 mm
- Operating Weight:
-
16 Ton Compact Bulldozer For Sale with Weichai Engine- Operating Weight:
16000 kg
- Engine Power:
131 kW
- Operating Weight:
-
22 Ton Crawler Bulldozer with Cummins Engine- Operating Weight:
22000 kg
- Engine Power:
175 kW
- Operating Weight:
-

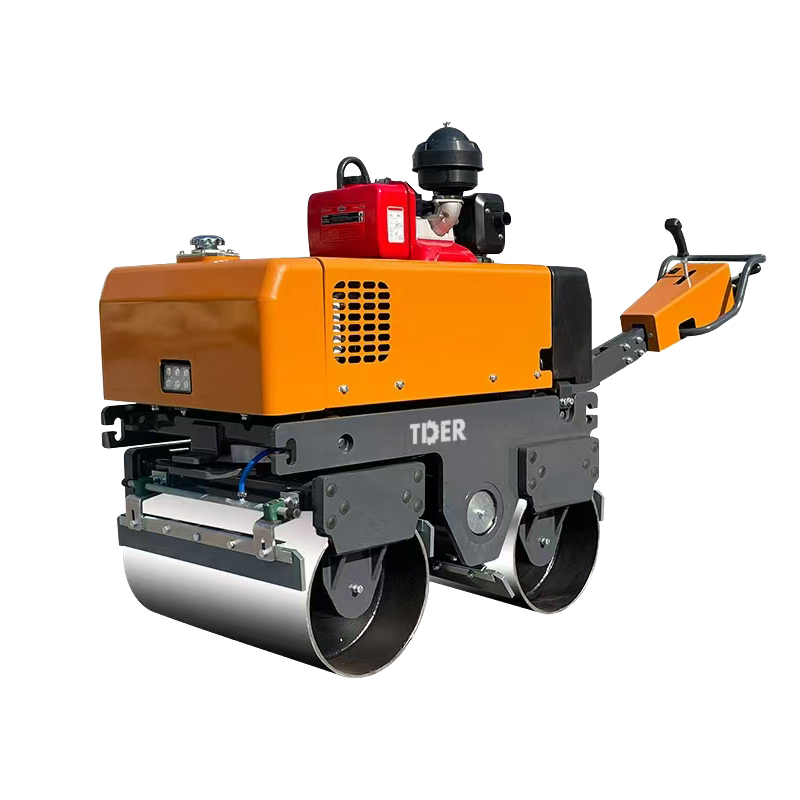

0.8 Ton Walk-Behind Road Roller with Dual Drum Vibration- Operating Weight:
800 kg
- Centrifugal Force:
12 kN
- Drum Width:
600 mm
- Operating Weight:
-

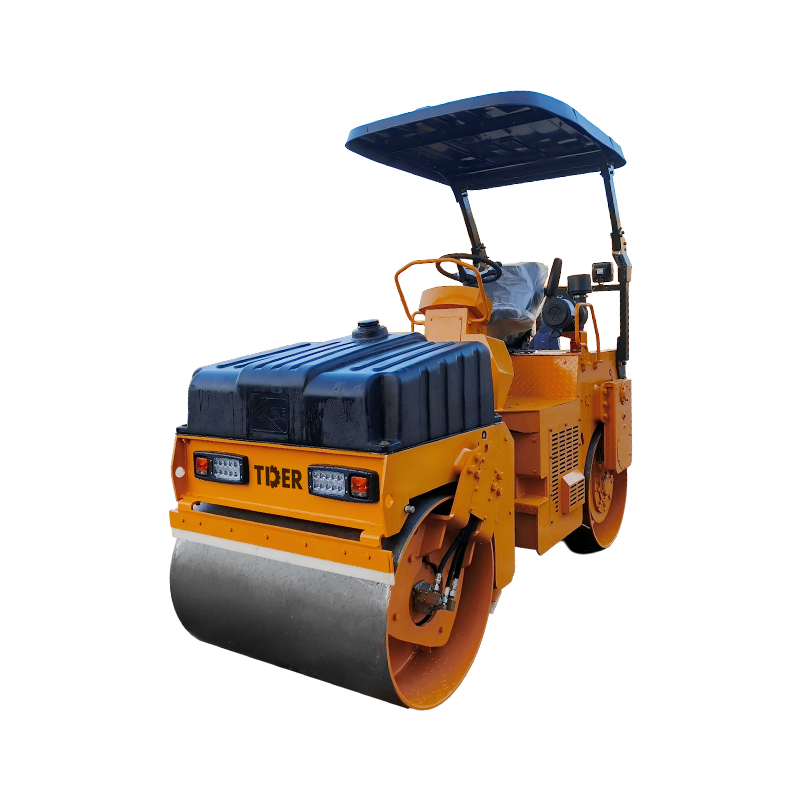

3.5 Ton Double Drum Road Roller for Asphalt Compaction- Operating Weight:
