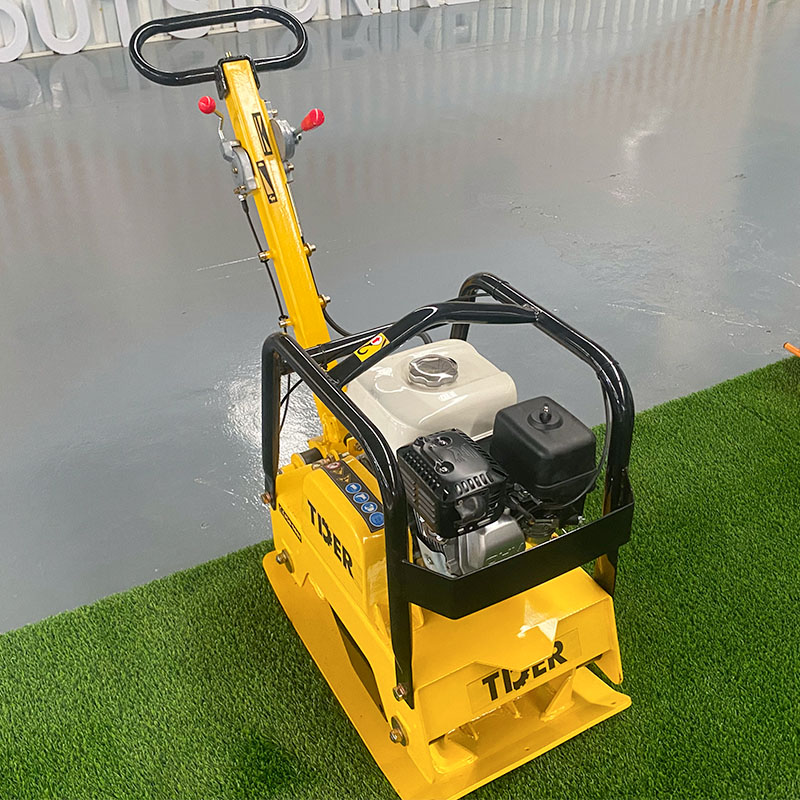

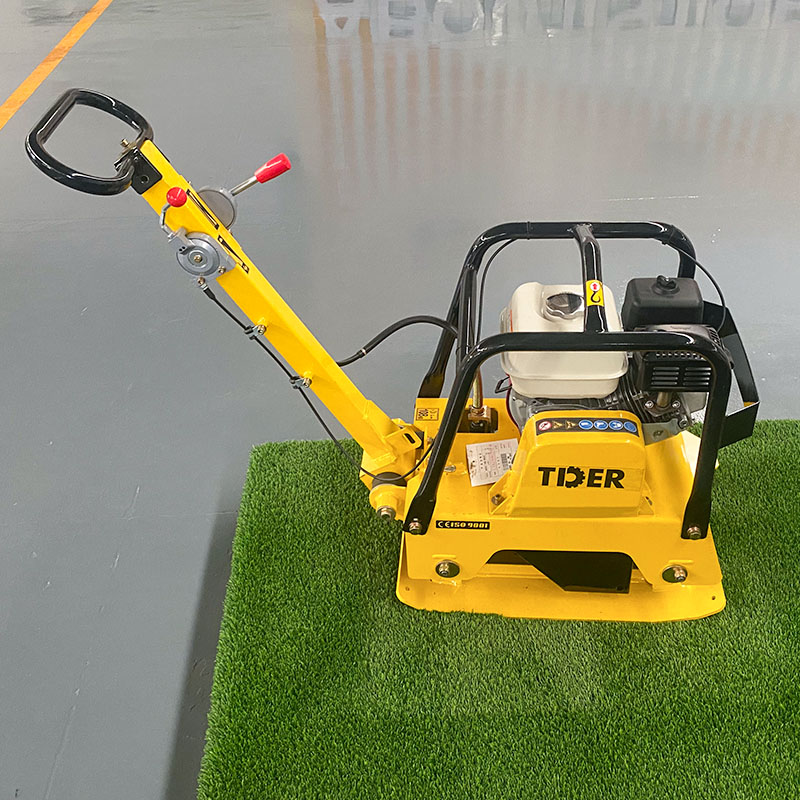

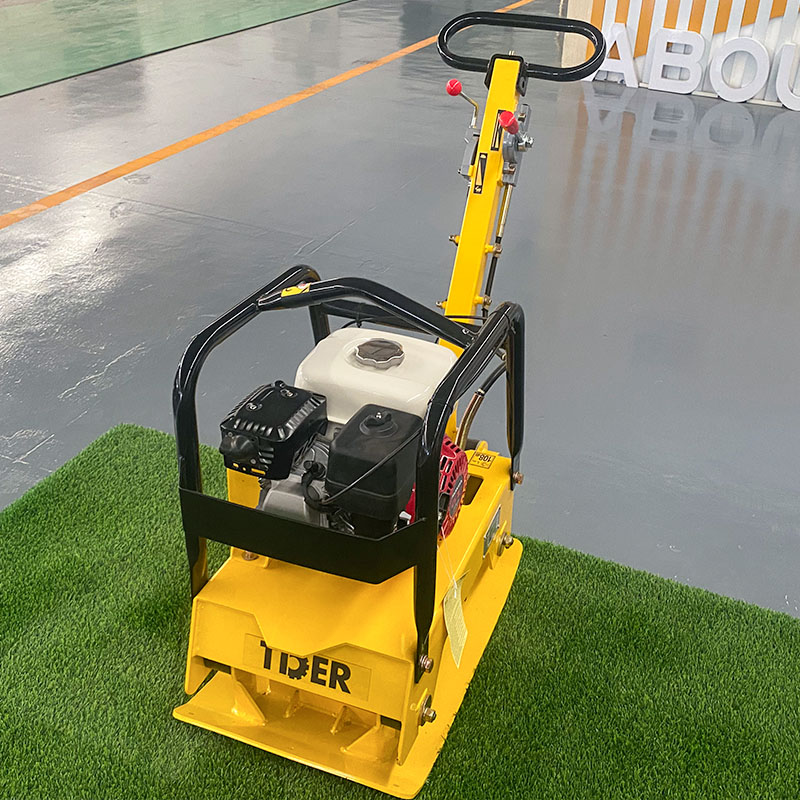

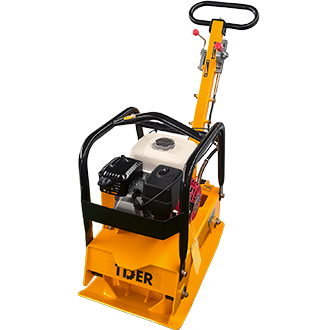

Name: 125 kg Plate Compactor With Low-Vibration Control
Availability: InStock

特征

Easy Turning With Responsive Handling

The TRP125 combines excellent turning performance with responsive handling, making it easy for operators to change direction and position the machine during compaction work. Its well-balanced design also helps maintain low horizontal resistance for smoother movement across the working surface.

Honda Gasoline Engine For Dependable Performance

Equipped with a Honda gasoline engine as standard, the TRP125 provides dependable power for daily compaction work. The proven engine configuration offers a practical combination of performance, easy operation and long-term reliability.

Full-Width Water Spray For Asphalt Compaction

The integrated spray system provides reliable water coverage across the full width of the base plate, helping prevent asphalt from sticking during compaction. Efficient water distribution reduces unnecessary water consumption and means less frequent refilling during operation.

Low Hand-Arm Vibration For Greater Operator Comfort

The TRP125 is designed to minimize the operator's daily exposure to vibration. Reduced vibration transmitted through the guide handle helps make extended compaction work more comfortable and supports more controlled machine handling throughout the working day.

规格

Engine Brand	—	HONDA
Engine Model	—	GX160
Engine Type	—	Single-Cylinder, Air-Cooled, Four-Stroke
Number of Cylinders	—	1
Engine Power	hp	5.5
Operating Weight	kg	125
Excitation Frequency	Hz	72
Exciting Force	kN	25
Compaction Depth	cm	30
Travel Speed	m/min	28
Working Efficiency	m²/h	400
Plate Size	cm	62 × 40
Working Dimensions	cm	120 × 40 × 93

*注：由于产品不断升级改进，规格和配置如有变更，恕不另行通知。所有信息仅供参考，部分功能为选配。请联系我们的国际销售团队进行确认。最终规格和配置以双方签署的正式合同为准。

产品展示

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

常见问题解答

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
