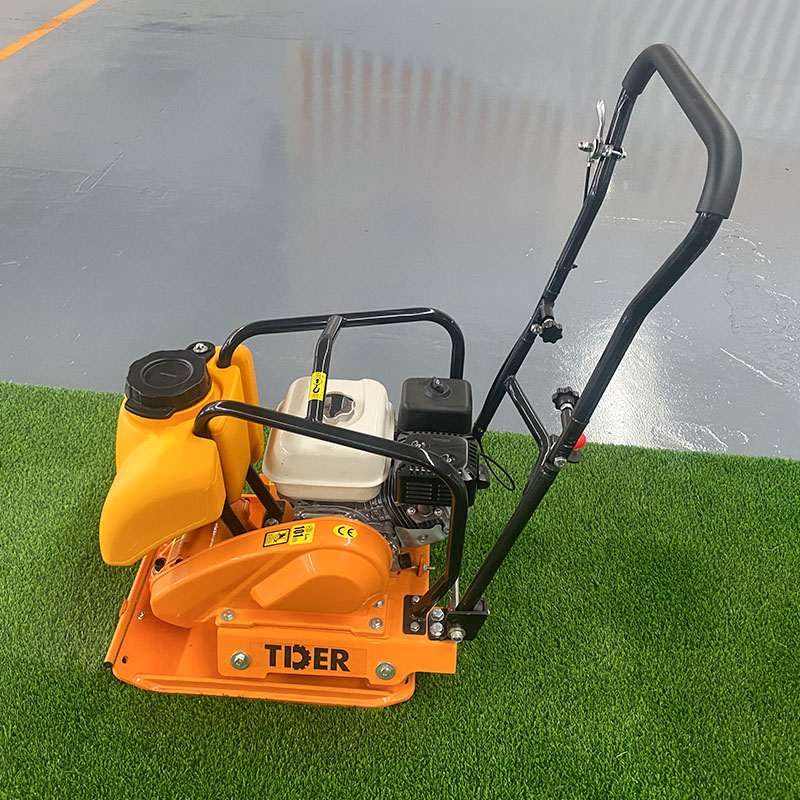

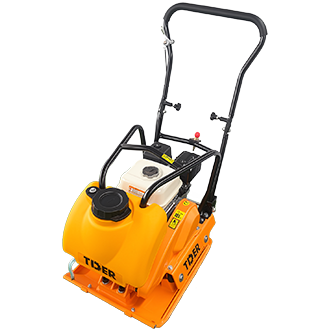

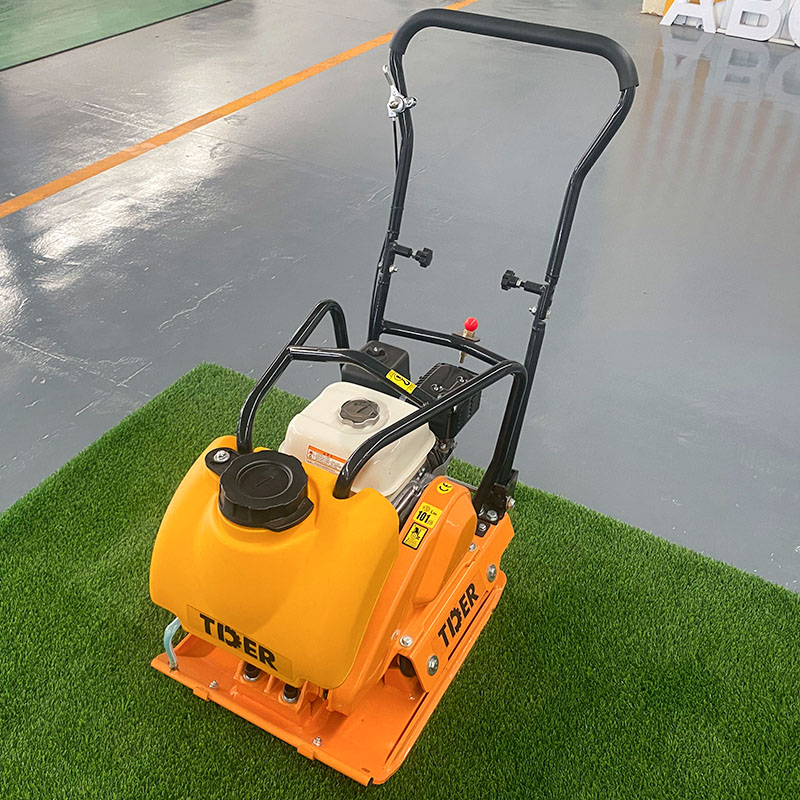

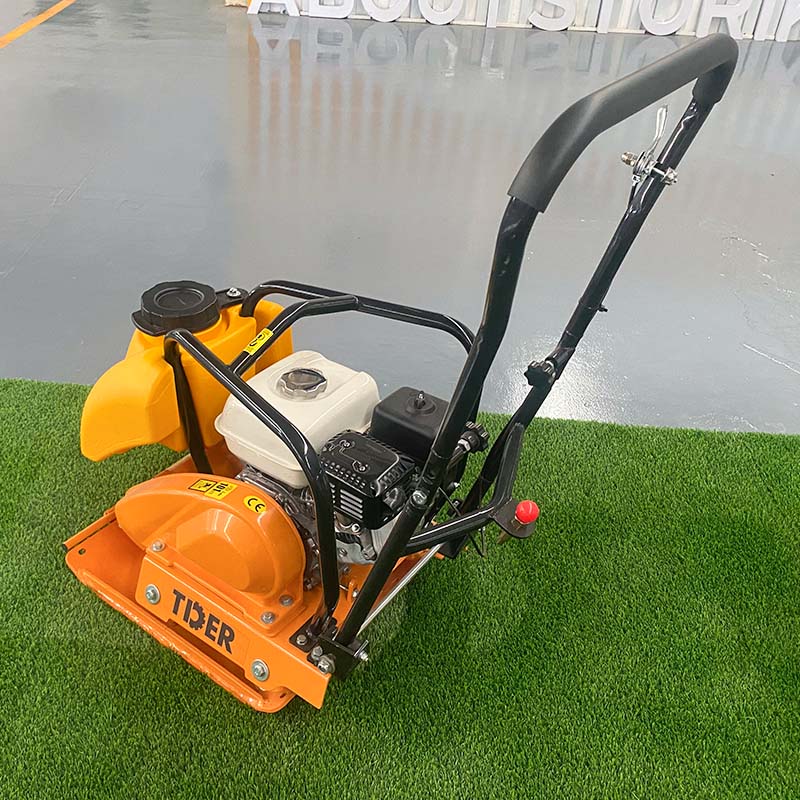

Name: 90 kg Plate Compactor For Smooth And Clean Compaction
Availability: InStock

特征

Smooth Maneuvering On Fresh Asphalt

The 90 kg plate compactor is designed for smooth movement and responsive steering on fresh asphalt surfaces. Its balanced operating characteristics make it easier to guide the machine through finishing work while helping operators achieve a clean and even surface.

Clean, Mark-Free Compaction Results

The optimized base plate is designed to deliver a clean compaction finish without leaving unwanted marks on the freshly laid surface. Its well-defined edges also help operators achieve neat results when working close to curbs and other boundaries.

Responsive Guide Handle For Precise Steering

The guide handle responds quickly to steering movements, giving the operator direct control over the machine's direction. This responsive handling makes positioning and turning easier, particularly during detailed finishing work.

Low-Maintenance Gasoline Power

The standard gasoline engine eliminates many maintenance concerns associated with electric equipment, such as dust accumulation around electrical components or issues related to unsuitable lubricants. This helps reduce routine maintenance requirements and supports lower operating costs over the machine's service life.

Optimized Base Plate For Consistent Compaction

The base plate has been optimized to support effective and consistent compaction across the working area. Its practical shape and clearly defined edges help the machine deliver a smooth finish while making it easier to work accurately along curbs and confined edges.

规格

Engine Brand	—	HONDA
Engine Model	—	GX160
Engine Type	—	Single-Cylinder, Air-Cooled, Four-Stroke
Number of Cylinders	—	1
Engine Power	hp	5.5
Operating Weight	kg	90
Excitation Frequency	Hz	92
Exciting Force	kN	15
Compaction Depth	cm	30
Travel Speed	m/min	23
Working Efficiency	≈/h	405
Plate Size	cm	53 × 50
Working Dimensions	cm	110 × 50 × 85

*注：由于产品不断升级改进，规格和配置如有变更，恕不另行通知。所有信息仅供参考，部分功能为选配。请联系我们的国际销售团队进行确认。最终规格和配置以双方签署的正式合同为准。

产品展示

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

常见问题解答

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
