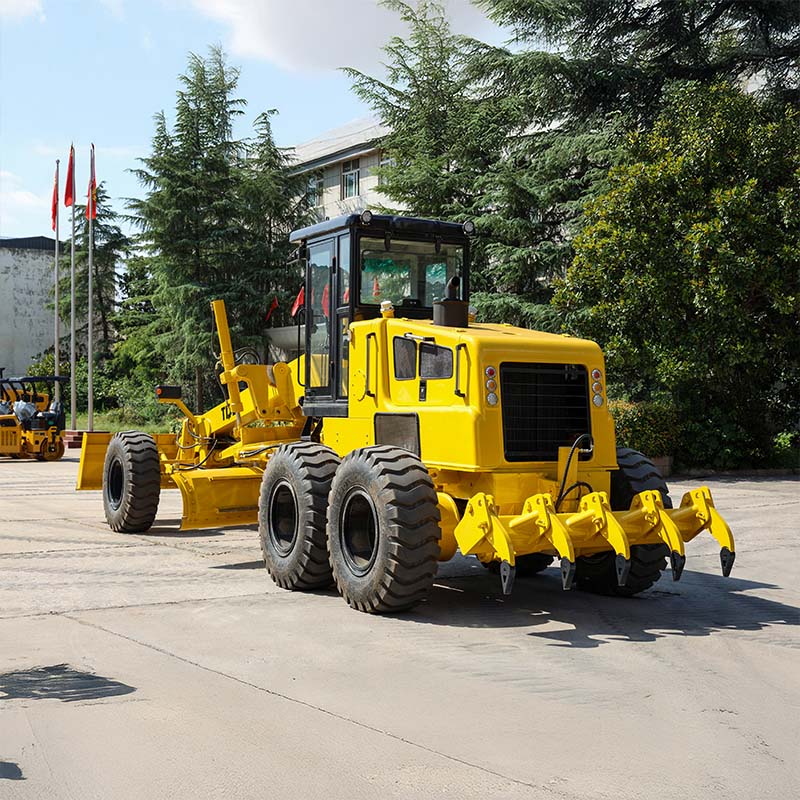

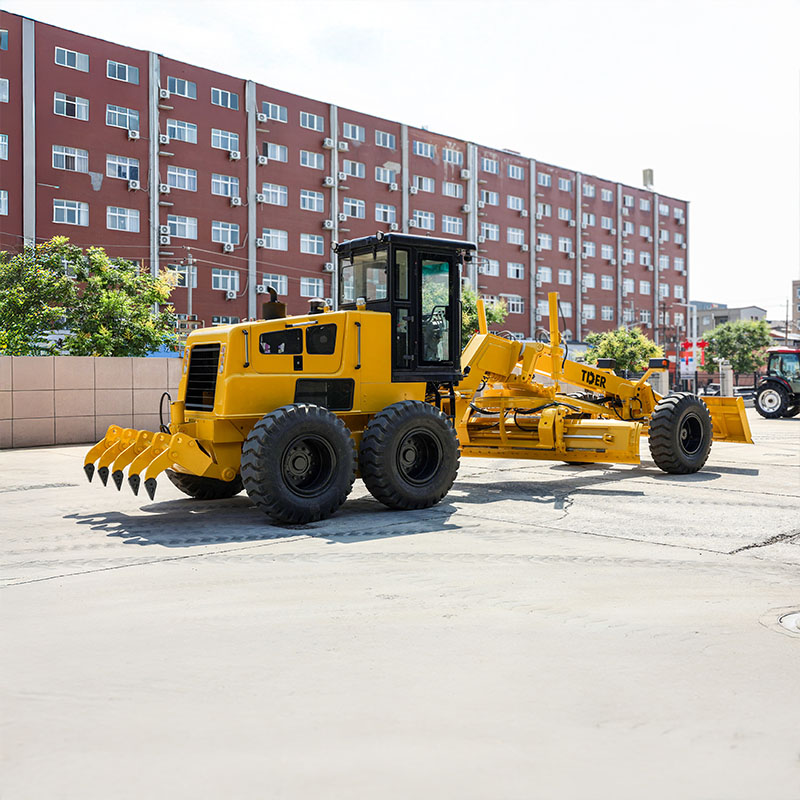

Name: 220HP Motor Grader for Sale with Cummins Engine
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Heavy-Duty Power System for Continuous Grading

The Cummins 6CTA8.3 engine delivers proven industrial-grade reliability with strong torque output under low-to-medium speed conditions, ensuring stable performance during long-hour road grading, earthmoving, and heavy-duty construction operations. Its durability-focused design supports consistent output under high load and harsh site conditions, reducing downtime in demanding projects.

Center Articulated Steering with Offset Working Capability

The center articulation frame combined with front wheel tilt steering enables lateral offset movement, allowing the machine to perform edge grading, shoulder shaping, and precise alignment work without repositioning the machine, significantly improving jobsite efficiency.

Advanced Multi-Function Hydraulic Control System

Dual imported HOSCO multi-way control valves provide highly responsive and precise hydraulic control of the moldboard. This allows smooth execution of complex operations such as blade tilt, angle adjustment, and fine grading control, ensuring high-accuracy surface finishing.

Modular Attachment Integration System

The modular design allows quick installation and removal of attachments such as rear rippers and counterweights. This flexible configuration improves machine adaptability across different construction tasks, including soil loosening, road base preparation, and maintenance operations.

Heavy-Duty Blade and Grading Performance System

The 3965×610mm moldboard delivers stable cutting force and smooth material distribution, ensuring high-quality leveling performance across road construction, site preparation, and large-scale earthmoving applications.

Operator Comfort and High-Efficiency Cabin System

The spacious cab is equipped with a mechanical suspension seat, high-capacity air-conditioning system, and multi-air outlet layout, significantly reducing operator fatigue and improving productivity during extended working hours in harsh environments.

Stability-Focused Load Distribution Chassis

Optimized front and rear axle load distribution improves traction stability and machine balance, ensuring reliable performance under heavy grading loads while maintaining smooth operation on uneven terrain.

Specifications

Self Weight	kg	16900
Front Axle Load	kg	4150
Rear Axle Load	kg	11080
Max Forward Speed	km/h	36.8
Max Reverse Speed	km/h	24.8
Gear System	—	F6/R3
Turning Radius	mm	7800
Hydraulic System Pressure	MPa	18
Blade Size (L×H)	mm	3965×610
Front Wheelbase	mm	2150
Rear Wheelbase	mm	2340
Wheelbase	mm	6362
Engine Model	—	Cummins 6CTA8.3
Engine Power	kW	160
Overall Dimensions	mm	8605×2695×3420

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
