Pile Driver
TPD60
Features
High-Torque Drilling Power System
Powered by a Yuchai 85kW four-cylinder engine, the system delivers strong and stable torque output, ensuring efficient pile driving performance in soil, gravel, and mixed geological conditions with consistent working reliability.
Flexible Drilling Depth for Multi-Condition Applications
Supports 0–6m standard drilling depth with optional 3m or 6m auger configurations, making it suitable for photovoltaic piles, foundations, and general construction drilling with flexible jobsite adaptability.
Low-Maintenance Structural Design for High Uptime Operation
The integrated frame structure is engineered for simplicity and durability, reducing overall failure rate while making daily maintenance easier and faster, ensuring higher machine availability on continuous job sites.
Real-Time Kinetic Energy Monitoring System
Built-in kinetic energy monitoring provides continuous feedback on working conditions and records key operational parameters, allowing operators to better control performance and improve drilling efficiency and safety.
Clean, Low-Emission & Low-Noise Working Performance
Designed for environmentally sensitive job sites, the system delivers reduced operational noise and zero industrial emissions during work, making it suitable for urban construction, infrastructure projects, and restricted environments.
High-Speed Rotary Drilling Performance
With 180r/min rotation speed and 80–300mm drilling diameter range, the system delivers efficient penetration performance across different soil and rock conditions, improving overall drilling productivity.
Multi-Industry Application Versatility
Designed for photovoltaic piling, water wells, slope anchoring, foundation engineering, mining support, and construction drilling, providing a versatile solution across multiple engineering sectors.
Specifications
| Overall Dimensions (L×W×H) | mm | 4700 × 2100 × 2800 |
| Track Width | mm | 400 |
| Engine Brand | - | Yuchai |
| Engine Power | kW | 85 |
| Drilling Diameter | mm | 80–300 |
| Drilling Depth | m | 0–6 |
| Reducer Torque | N·m | 13000 |
| Main Flow Pump | - | Triplex Pumps |
| Oil Pump Flow | L/min | 40 / 40 / 32 |
| Drill Stem Speed | r/min | 180 |
| Climbing angle | ° | 30 |
| Rock Hardness | F | 6–20 |
| Sliding Frame Pitch Angle | ° | 120 |
| Drill Arm Swing Angle | ° | 150 |
| Slider Swing Angle | ° | 40 |
| Travel Speed | km/h | 0–3 |

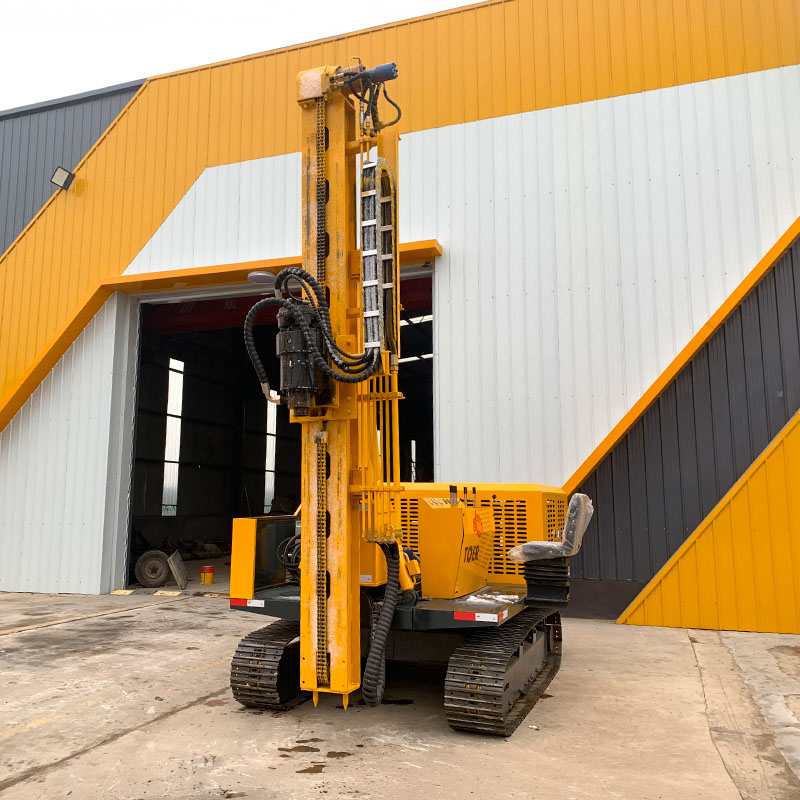

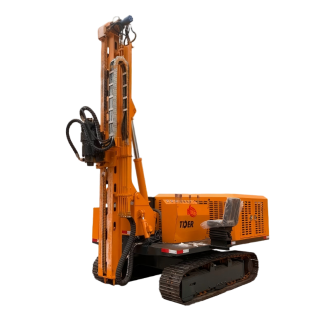

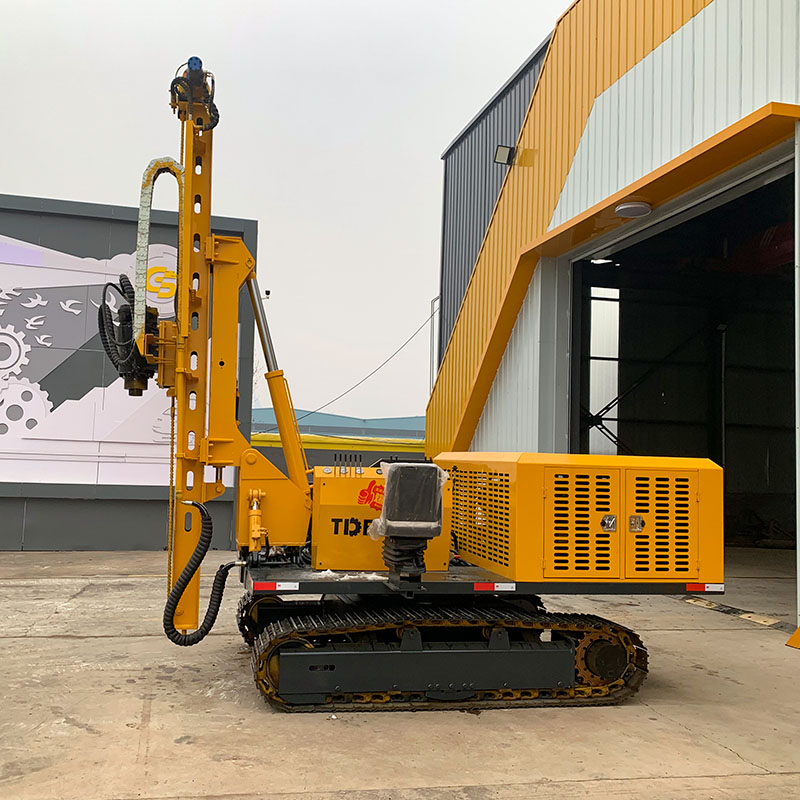

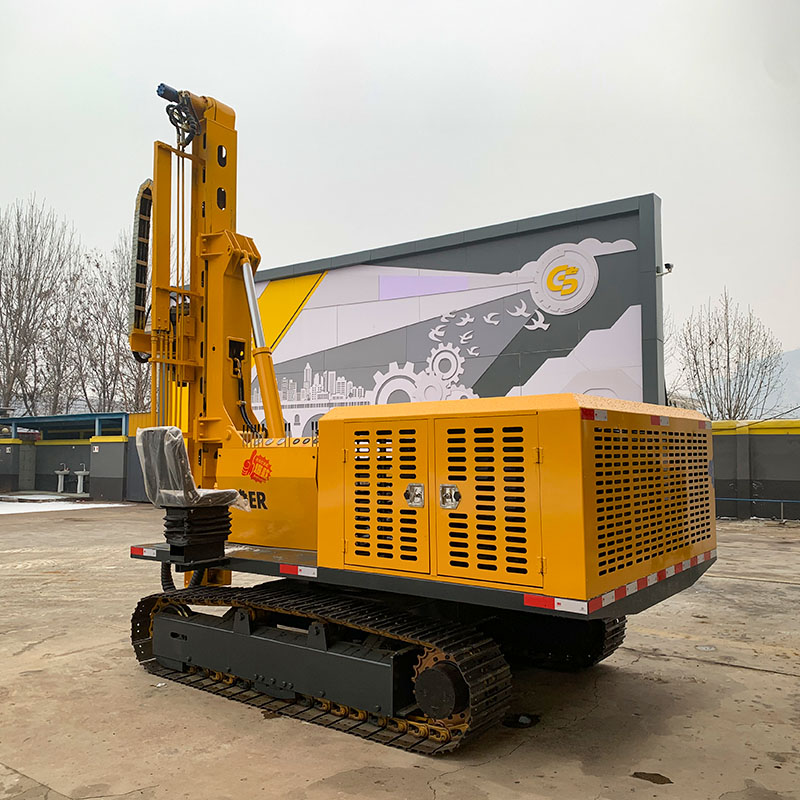

Product Showcase
