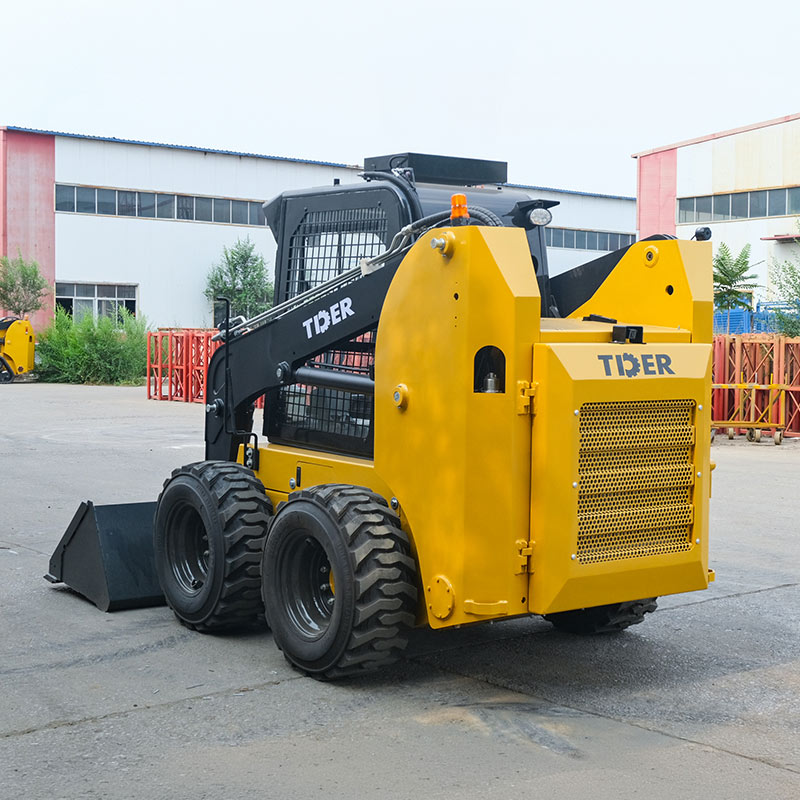

Economy 950kg Skid Steer Loader
TDS65
Features
Cost-Effective Performance for Budget-Conscious Projects
TDS65 Economic Edition is designed to deliver uncompromised lifting power and hydraulic capability while controlling initial equipment investment. By combining reliable core systems with a streamlined, cost-optimized configuration, this model reduces unnecessary complexity—making it the ideal choice for first-time buyers, rental fleets, and cost-sensitive projects.
Increased Machine Weight for Better Stability & Durability
The economy version features a increased overall machine weight, improving stability during lifting and loading operations, enhancing structural rigidity, and ensuring more durable performance in demanding job site conditions.
Quick Coupler for Multi-Task Efficiency
Standard quick coupler system allows fast switching between attachments, improving machine utilization and supporting multiple job functions with one unit.
Danfoss Hydraulic System for Industrial-Grade Reliability
Even in the economy version of the TDS65 skid steer loader, the machine is equipped with a Danfoss hydraulic motor and pump system, ensuring the same level of core hydraulic reliability found in higher-end industrial equipment. This design choice significantly enhances the machine’s overall value and durability without increasing unnecessary system complexity.
Specifications
| Operating Load | Kg | 950 |
| Max Speed | Km/H | 12 |
| Rated Flux | L/Min | 75 |
| High Flow Flux | L/Min | / |
| Tire Model | 12-16.5 | |
| Self Weight Bucket | Kg | 3300 |
| Bucket Capacity | M³ | 0.4 |
| Overall Operating Height | mm | 4000 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 2750 |
| Overall Length With Bucket | mm | 3490 |
| Dumping Height | mm | 2400 |
| Width | mm | 1880 |
| Bucket Width | mm | 1880 |
| Height To Bottom Of Level Bucket | mm | 2933 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3100 |
| Dumping Reach | mm | 750 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 991 |
| Ground Clearance | mm | 205 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1198 |
| Front Tuning Radius | mm | 1958 |
| Rear Tuning Radius | mm | 1728 |
| Rear Axle To Bumper | mm | 1208 |
| Tread Width | mm | 1500 |
| Engine | Xinchai A498BPG | |
| Rated Power | Kw | 45 |
| Fuel Tank Capacity | L | 80 |
