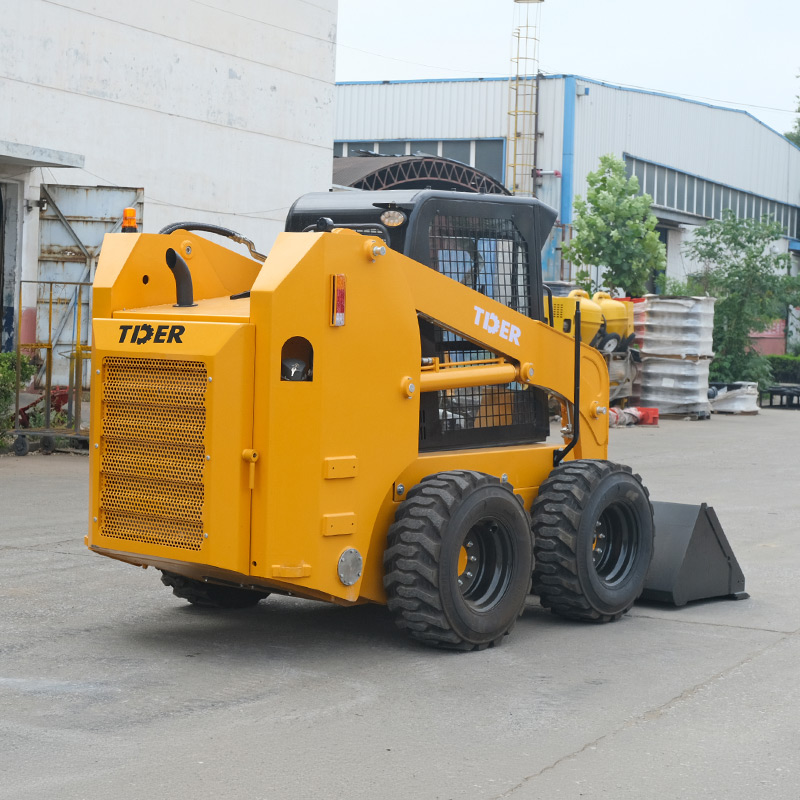

Economy 1200kg Skid Steer Loader
TDS100
Features
Premium Core Components at Lower Investment Cost
TDS100 economy version is designed to reduce overall purchase cost while still maintaining premium core components, including a Xinchai engine, Rexroth hydraulic system, and Advance tires, delivering reliable performance without sacrificing key working quality. This makes it an ideal solution for users who need a lower investment machine with trusted industrial-grade components for construction, material handling, and multi-attachment operations.
Stable Chassis Design for Heavy-Duty Operation
With a 3950kg operating weight and 1115mm wheelbase, the machine provides improved balance under load, reducing instability during lifting and turning operations.
High Flow Hydraulic System for Powerful Attachment Performance
Equipped with a 75 L/min standard flow and up to 120 L/min high-flow system, TDS100 provides strong hydraulic support for demanding attachments such as breakers, augers, sweepers, and trenchers. This significantly expands machine application scenarios beyond basic loading tasks.
High-Visibility LED Working Light System
Impact-resistant LED light clusters provide a wide and bright working field, ensuring clear visibility during night operation and low-light conditions, improving both safety and operational efficiency.
Specifications
| Operating Load | Kg | 1200 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 75 |
| High Flow Flux | L/Min | 120 |
| Tire Model | 12-16.5 | |
| Self Weight Bucket | Kg | 3950 |
| Bucket Capacity | M³ | 0.5 |
| Overall Operating Height | mm | 4070 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 2880 |
| Overall Length With Bucket | mm | 3580 |
| Dumping Height | mm | 2450 |
| Width | mm | 1880 |
| Bucket Width | mm | 1880 |
| Height To Bottom Of Level Bucket | mm | 2983 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3150 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1115 |
| Ground Clearance | mm | 205 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1250 |
| Front Tuning Radius | mm | 2112 |
| Rear Tuning Radius | mm | 1774 |
| Rear Axle To Bumper | mm | 1082 |
| Tread Width | mm | 1500 |
| Engine | Xinchai A498T | |
| Rated Power | Kw | 55 |
| Fuel Tank Capacity | L | 75 |
