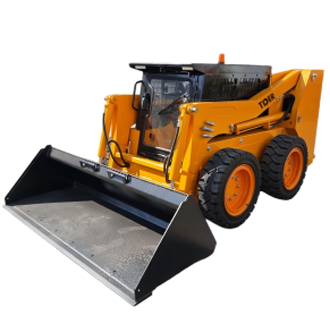

Name: 850kg Low Height Small Skid Steer Loader for Tight Space Work
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

1.5m Ultra-Low Machine Height for Restricted Space Access

With a machine height of only 1.5 meters, the TDS50 can easily enter low-roof buildings, sheds, tunnels, and indoor working areas where standard skid steer loaders cannot operate. This significantly expands job site accessibility and improves equipment utilization in space-limited environments.

Enclosed Cab for All-Weather Operator Protection

The standard enclosed cab design provides protection from dust, wind, rain, and harsh job site conditions, ensuring a more comfortable and safer working environment for operators during long working hours.

Smooth Hydraulic Control for Easier Operation

Equipped with a hydraulic pilot control system, the machine offers smoother and more precise control compared to traditional mechanical linkage systems. This reduces operator fatigue and improves handling accuracy during repeated lifting, loading, and attachment operations.

Specifications

Operating weight	kg	2800
Rated load	kg	850
Bucket capacity	m³	0.4
Tire（track） model		8.5-16.5
Max Speed	km/h	6
Max traction	kN	≥25.40
Max breakout	kN	≥18.4
Lifting time of boom	s	7
Engine		Xinchai A495
Rated power	kW	45
Engine displacement	L	3.17
Overall operating height	mm	3770
Height to bucket hinge pin	mm	2810
Height to top of cab	mm	1600
Height to bottom of level bucket	mm	2643
Without bucket length	mm	2800
Overall length with bucket	mm	3490
Dumping angle at maximum height	°	40
Dumping height	mm	2080
Dumping reach	mm	700
Rollback o bucket on ground	°	30
Rollback of bucket at full height	°	104
Wheel base	mm	991
Ground clearance	mm	205
Angle of departure	°	20
Front turning radius without bucket	mm	1228
Front tuning radius	mm	2010
Rear tuning radius	mm	1746
Rear axle to bumper	mm	1208
Tread width	mm	1450
Width	mm	1720
Bucket width	mm	1740

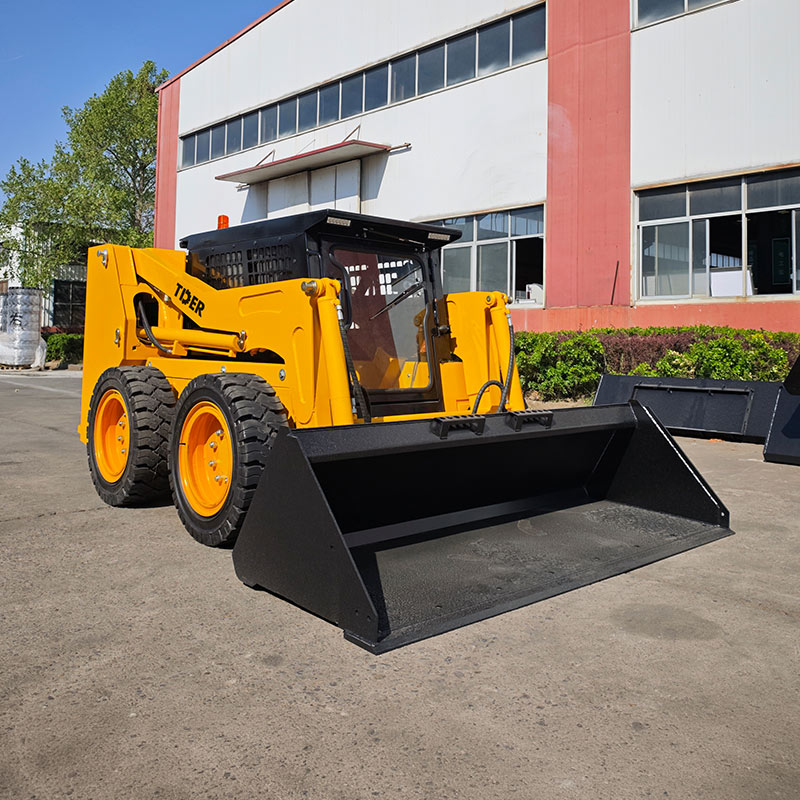

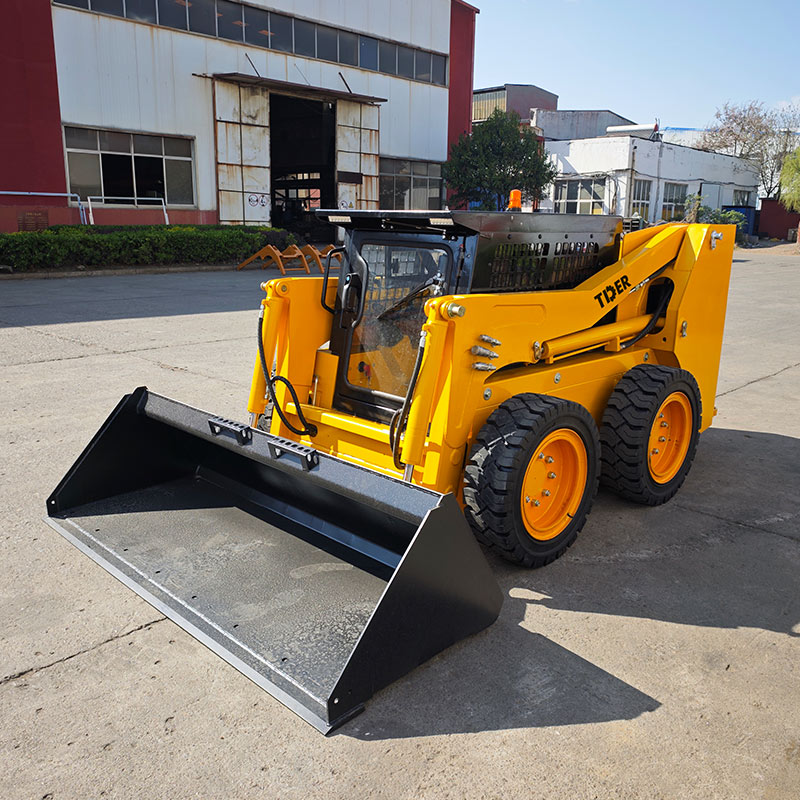

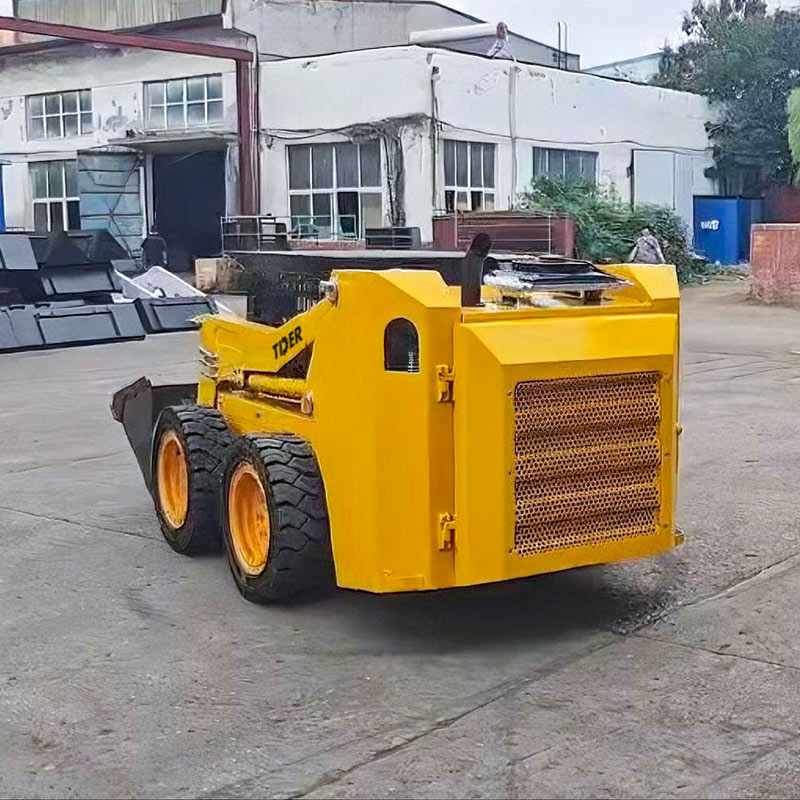

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
