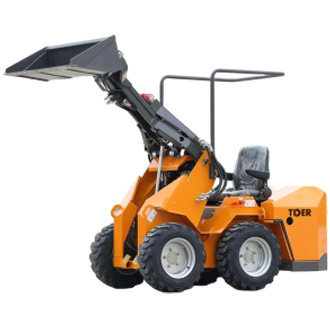

Name: 560kg Chinese Mini Skid Steer for Construction and Farm Use
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Strong Climbing Ability for Rough Terrain Performance

A 30% climbing capacity allows stable operation on ramps, muddy ground, and uneven job sites, ensuring reliable mobility where standard small equipment may struggle.

Flexible Gasoline & Diesel Engine Options

TDS23S offers flexible engine configurations, including gasoline and diesel options, with an available Honda gasoline engine choice, providing users with reliable starting performance and suitable power solutions for different working preferences and markets.

Fast Working Cycle for Higher Job Site Efficiency

With fast hydraulic response times (lifting 4.5s, lowering 3.1s, tipping 1.8s), the machine improves cycle efficiency, helping operators complete more work in less time during repetitive loading tasks.

Compact Ride-On Design with High Load Capacity

TDS23S features a compact ride-on design while still delivering a 560kg rated load capacity, providing strong material handling ability within a small machine footprint. This combination allows the machine to operate efficiently in tight job sites where space is limited, without sacrificing lifting and loading performance.

Specifications

Performance	Rated Load	kg	260
	Bucket Capacity	m³	0.15
	Max. Lift Weight	kg	375
	Overall Dimensions	mm	228511351270
	Working Speed	km/h	0-6
	Rated Pressure	Mpa	17
	Lifting Time	S	4.3
	Descent Time	S	3.3
	Dumping Time	S	1.5
	Climbing Ability	%	30
	Working Weight	kg	890	900	930
Engine	Brand		Briggs&Stratton 3864	Rato R740D	KOOP KD2V80
	Type		Petrol engine, V-twin		Diesel engine, water-cooled, V-twin
	Output Power		23HP/3600rpm	23HP/3600rpm	20HP/3000rpm
	Fuel Consumption	L/h	≤6.7	≤6.7	≤3.6
	Starting Method		Electric start
Capacity	Fuel Tank	L	25
	Engine Oil	L	1.7	1.6	3
	Hydraulic Tank	L	25

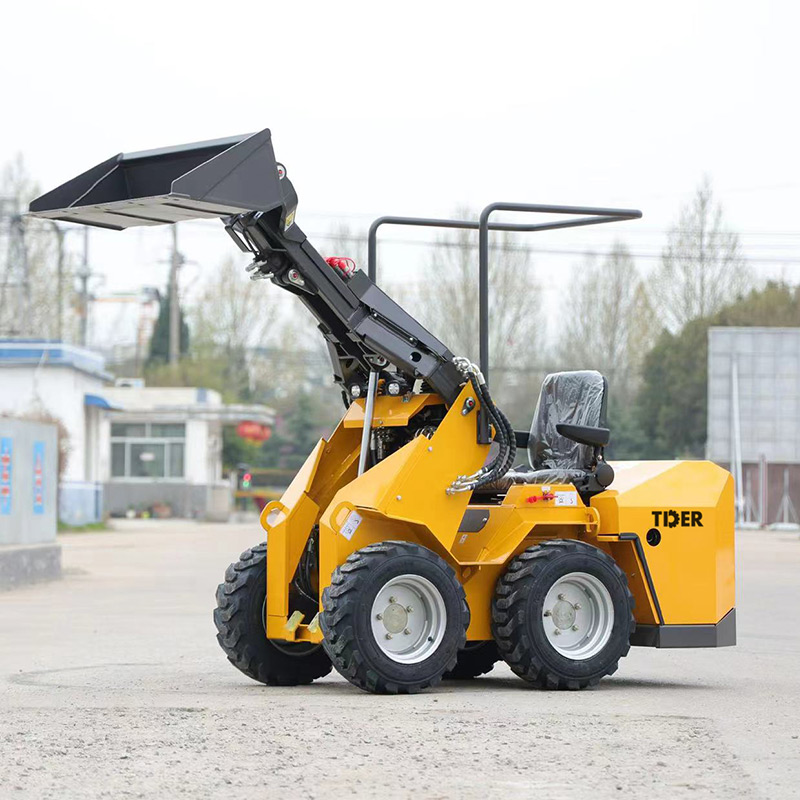

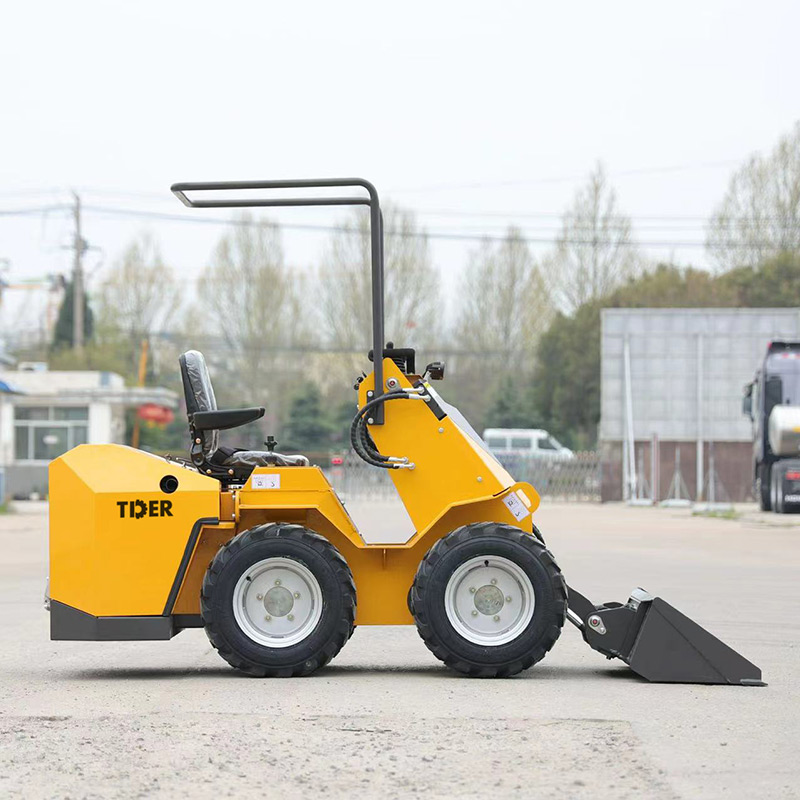

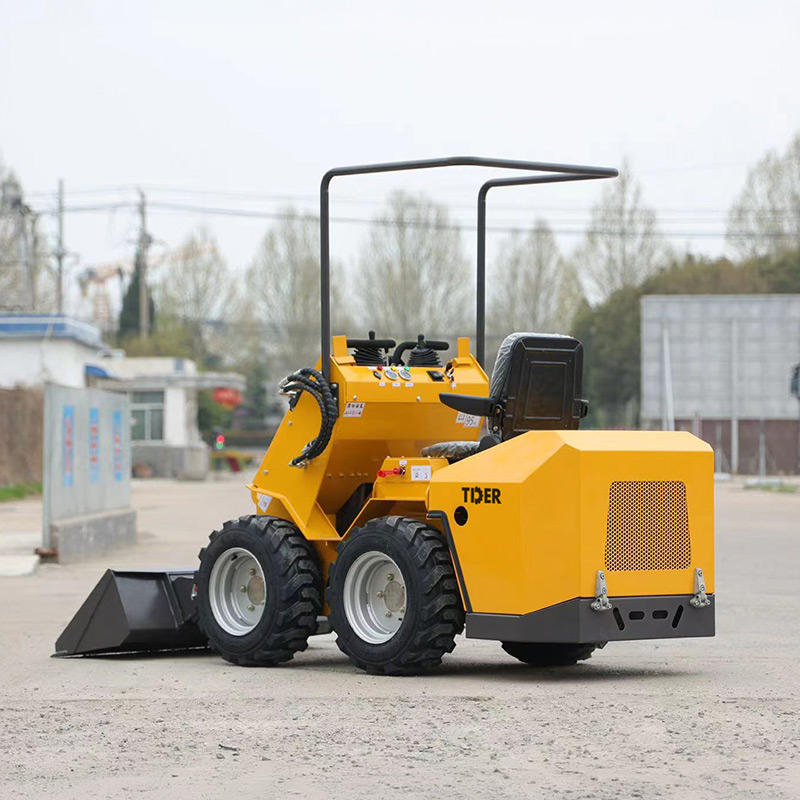

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
