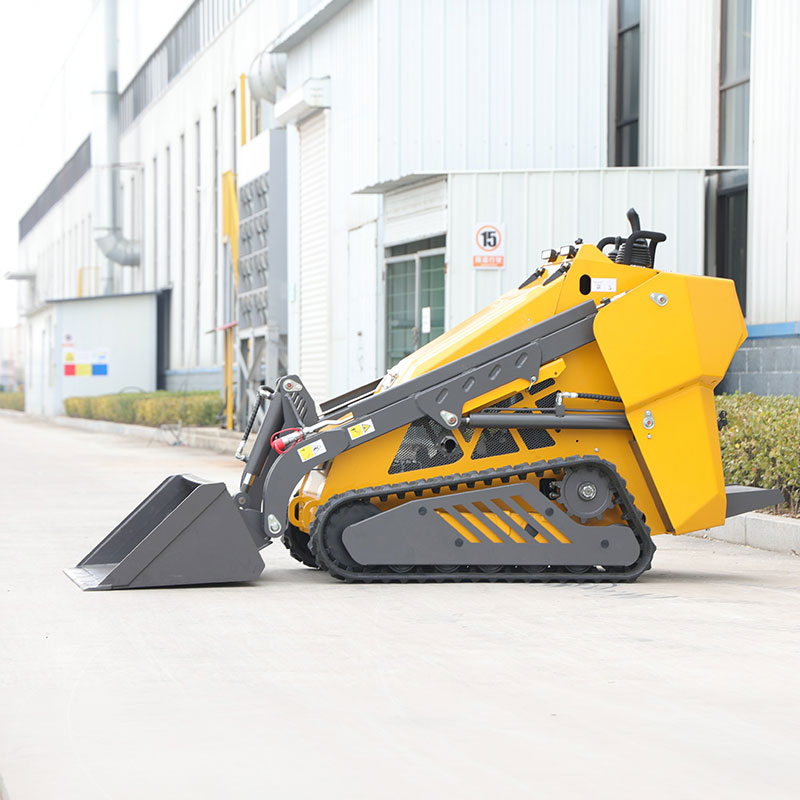

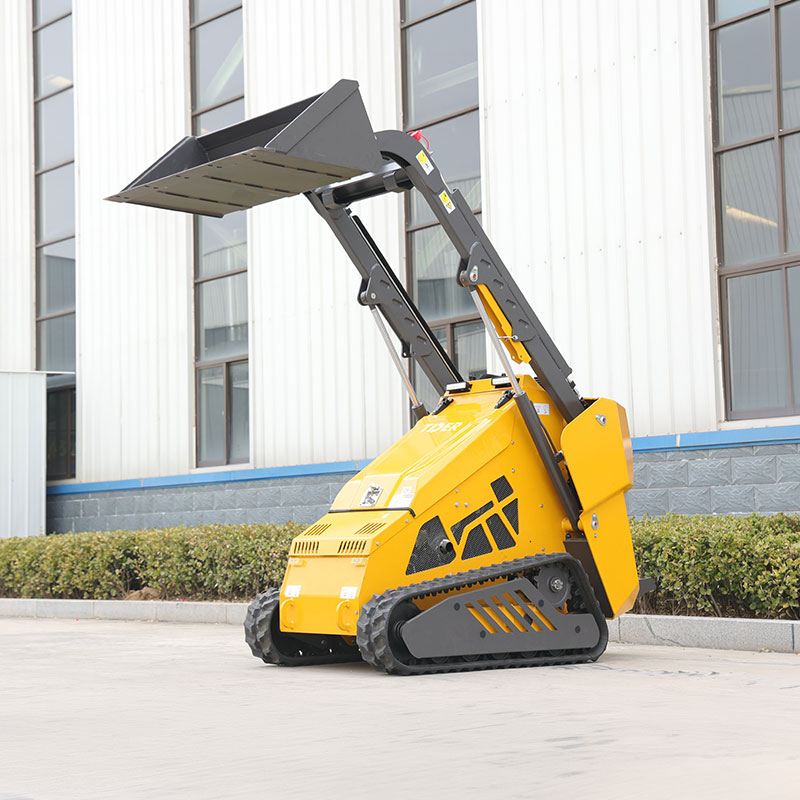

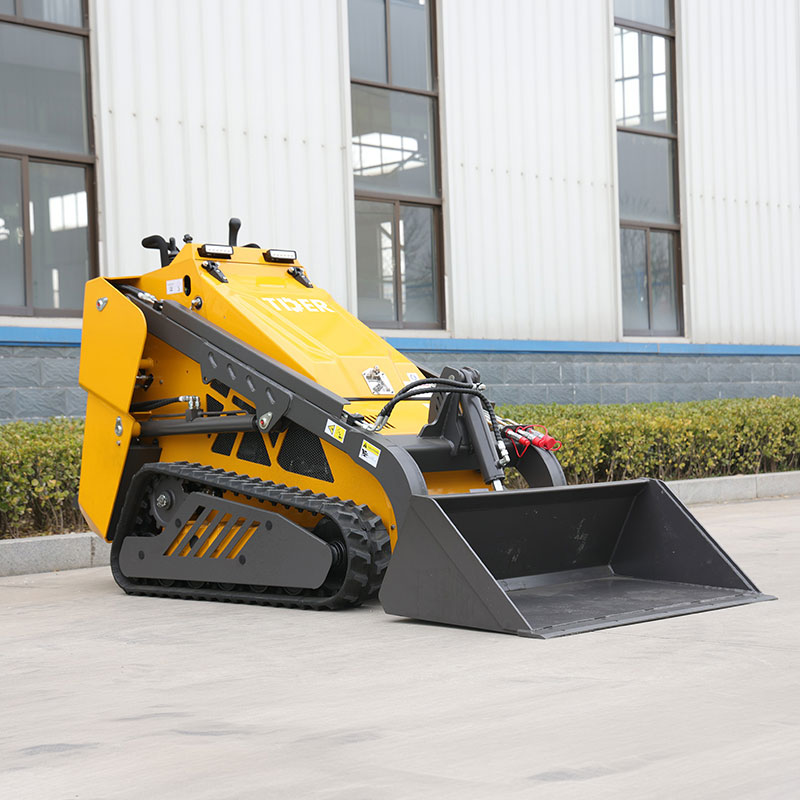

450kg Stand-On Track Skid Steer Loader
DS25

450kg Stand-On Track Skid Steer Loader
DS25
450 kg
0.2 m³
Equipped with a high-flow axial piston pump and a dedicated hydraulic oil cooler, the DS25 delivers smooth and responsive hydraulic power for attachments. The system maintains stable temperatures under continuous high-load operations, preventing power loss and ensuring consistent efficiency even in challenging work conditions.
Choose from Yanmar, Kubota, or Perkins engines, delivering 17.8–18.4 kW of reliable power. Multi-brand options allow flexibility for different regions, fuel types, and maintenance requirements while providing stable performance, reduced fuel consumption, and long-term durability.
DS25 features wear-resistant triangular tracks and Impro travel motors, offering superior grip and off-road mobility. With 30% gradeability and speeds up to 6.5 km/h, it performs efficiently on construction sites, farms, or confined spaces.
Full hydraulic joystick control, combined with high-quality PWG/Bombay pumps, Italian PWG valves, and custom cylinders, ensures precise bucket movements and smooth operation. Operators experience reduced fatigue while achieving high productivity and accuracy.
DS25 features a stand-on operator platform, giving operators an unobstructed 360° view of the work area. Weighing only 1300 kg with a 0.2 m³ bucket, this compact loader easily navigates tight spaces while maintaining precise control. The stand-on design enhances safety, allows quick entry and exit, and provides superior agility in confined environments.
The oversized hydraulic oil cooler ensures reliable operation under heavy workloads, reducing wear on key components and increasing the machine’s service life—delivering strong ROI over time.
DS25 can handle a range of popular attachments, including buckets, pallet forks, log grapples, dozer blades, augers, and hydraulic breakers, making it a highly versatile compact loader for construction, landscaping, forestry, and industrial work.
| Rated load | kg | 450 | |
| Bucket Capacity | m³ | 0.2 | |
| Maximum lift | kg | 1200 | |
| Operating speed | km/h | 0~6.5 | |
| Rated pressure | Mpa | 21 | |
| Lifting time | S | 5 | |
| Descent time | S | 5 | |
| Tipping Time | S | 5 | |
| Gradeability | % | 30 | |
| Operating Weight | kg | 1300 | |
| Brand | Kubota D1105 | Perkins 403J-11 | |
| Output power | 18.2kw/3000rpm | 18.4kW/2800rpm | |
| Fuel tank | L | 35 | |
| Hydraulic oil container | L | 25 | |
