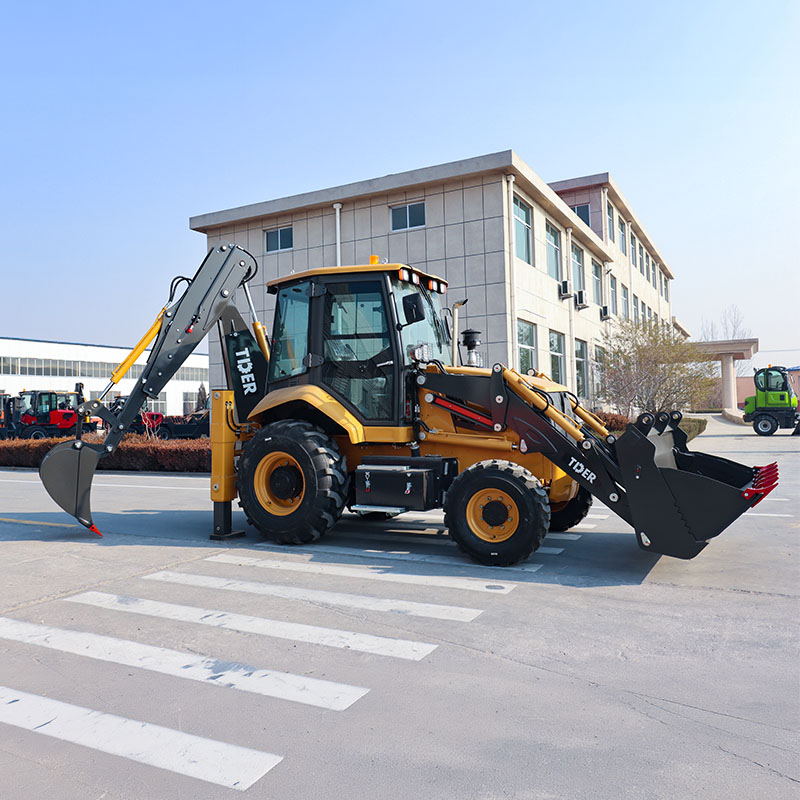

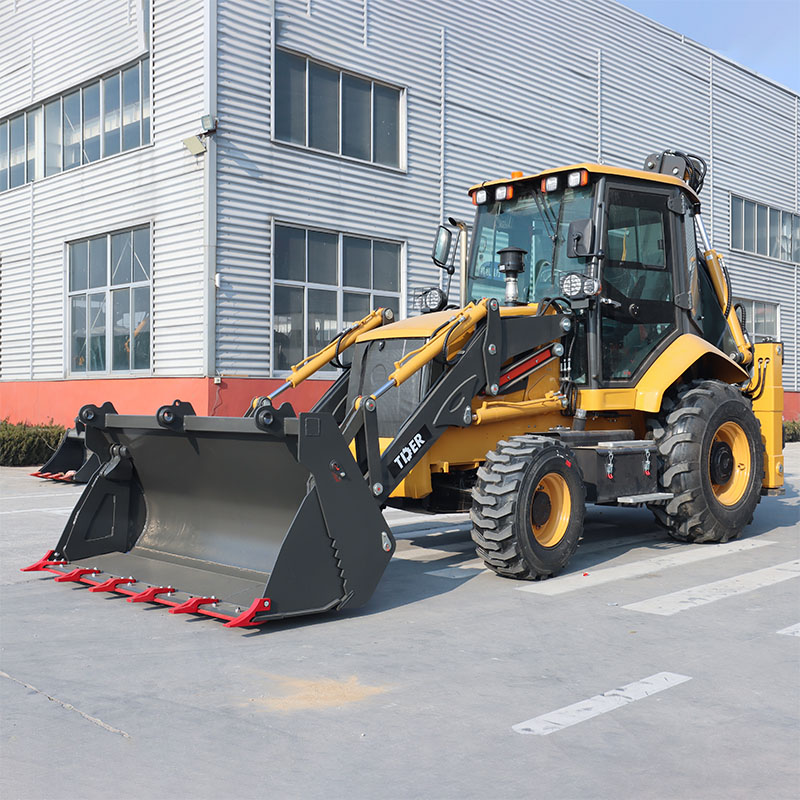

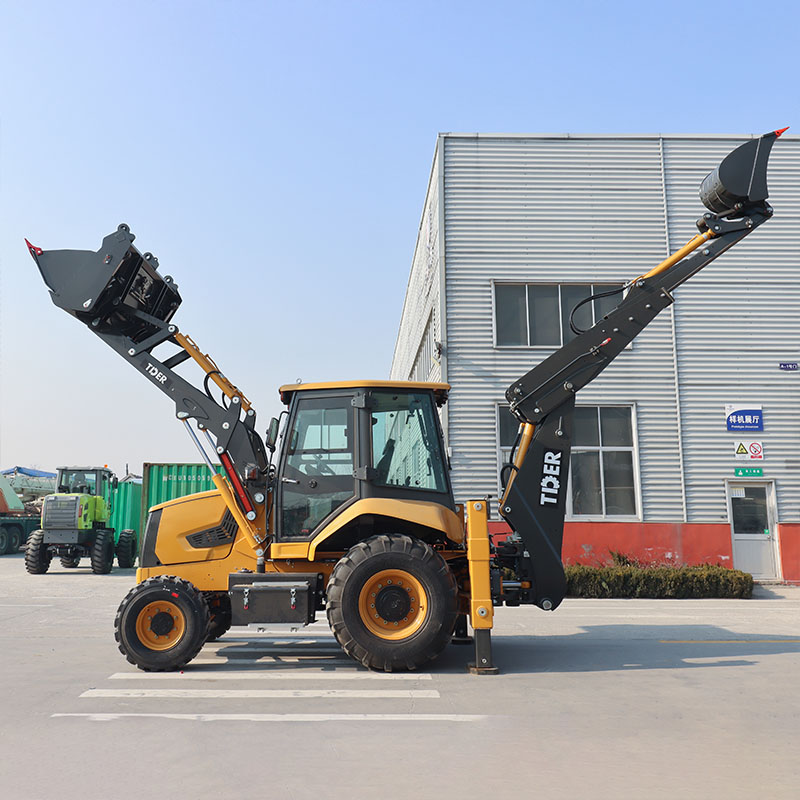

2.5 Ton Backhoe Loader
ZT388-Ⅳ
Features
Smoother Operation
The semi-electronic 4F/4R transmission system improves gear transition smoothness while maintaining mechanical reliability, allowing the machine to switch efficiently between travel and working modes, improving fuel efficiency and operator control in different job conditions.
Higher Hydraulic Efficiency
The hydraulic system is equipped with a high-end load-sensing valve from Lecro, a brand positioned at the same level as Rexroth-class systems, enabling precise flow control, faster hydraulic response, and more stable multi-action coordination under heavy load conditions.
Flexible Multi-Task Operation
ZT388-Ⅳ is designed as a multi-purpose working platform with optimized front loader and rear excavator systems, enabling a single machine to handle a wide range of job site requirements across construction, agriculture, municipal, and utility applications, effectively reducing the need for multiple machines on site.
Rapid Attachment Change for Higher Job Site Efficiency
Quick attachment switching capability significantly reduces downtime and improves overall working efficiency, allowing operators to move seamlessly between different tasks without long equipment change delays.
Specifications
| Overall Dimensions | Dimensions (mm) | 6150*2350*3763 |
| Wheel base (mm) | 2250 | |
| Track (mm) | 1950 | |
| Minimum Ground Clearance (mm) | 300 | |
| Minimum Turning Radius (mm) | 6580 | |
| Performance Parameters | System Pressure (Mpa) | 18 |
| Total Weight (kg) | 8300/8500 | |
| Maximum Speed (Km/h) | 28/38 | |
| Maximum Climbing Ability (°) | 35 | |
| Excavation Parameters | Maximum Telescopic Excavation Depth (mm) | 4000/5300 |
| Maximum Excavation Radius (mm) | 4800/6000 | |
| Maximum Lifting Height (mm) | 5200/5950 | |
| Bucket Capacity (m³) | 0.3 | |
| Excavator Rotation Angle (°) | 190 | |
| Loading Parameters | Maximum Unloading Height (mm) | 2742 |
| Maximum Unloading Distance (mm) | 1062 | |
| Bucket Capacity (m³) | 1.2 | |
| Engine | Model | Yuchai |
| Rated Power (KW) | 75 | |
| Rated Speed (r/min) | 2600 | |
| Cylinders-Bore (mm) | 4-105 | |
| Transmission System | Gearbox | Semi-Electronic Shift Transmission |
| Number of Gears | 4 Forward, 4 Reverse | |
| Liquid Torque Converter | Beilian ZL26 | |
| Axle | Brand | Yunyu |
| Tires | 14-17.5/19.5L-24 | |
| Driving Brake | Air Over Hydraulic Disc Brake | |
| Parking Brake | Air Brake | |
| Oil Capacity | Fuel Tank (L) | 100 |
| Hydraulic Oil Tank (L) | 100 | |
| Others | Drive Type | Four-wheel Drive |
| Transmission Type | Liquid Transmission | |
| Control System | Electromagnetic Hydraulic Pilot Control |
