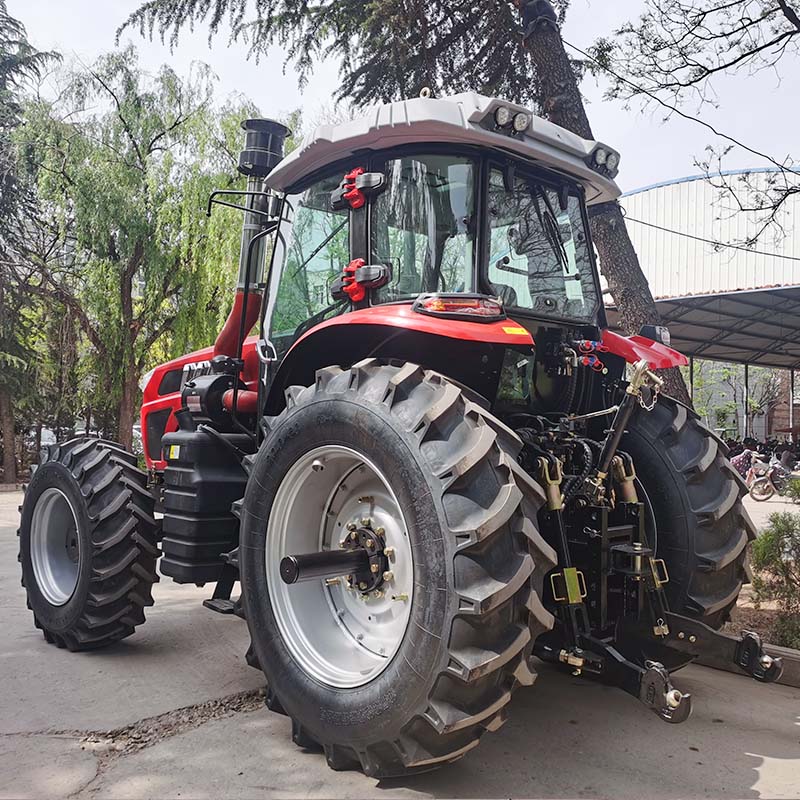

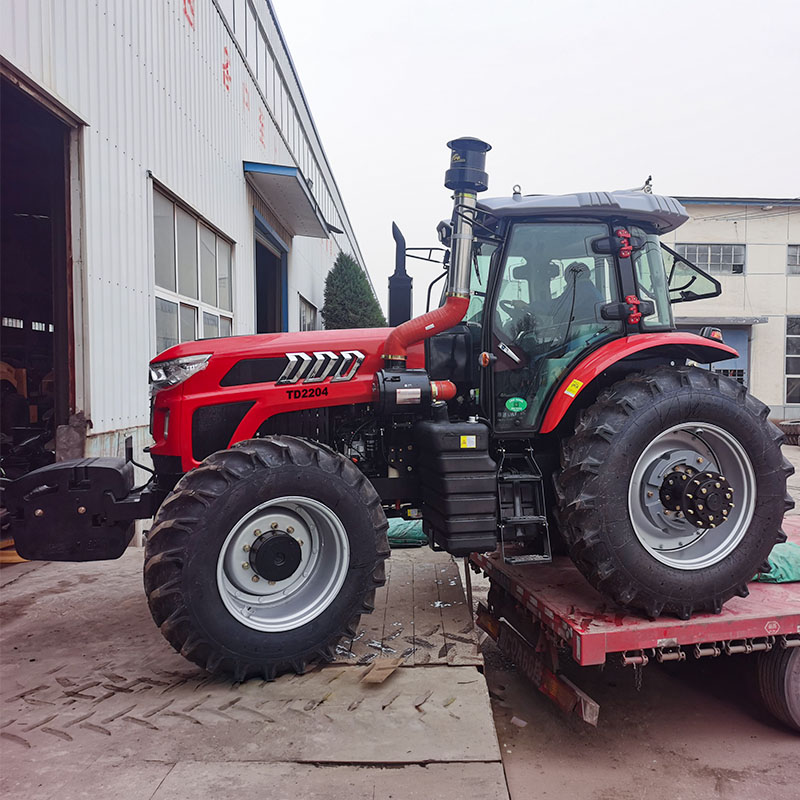

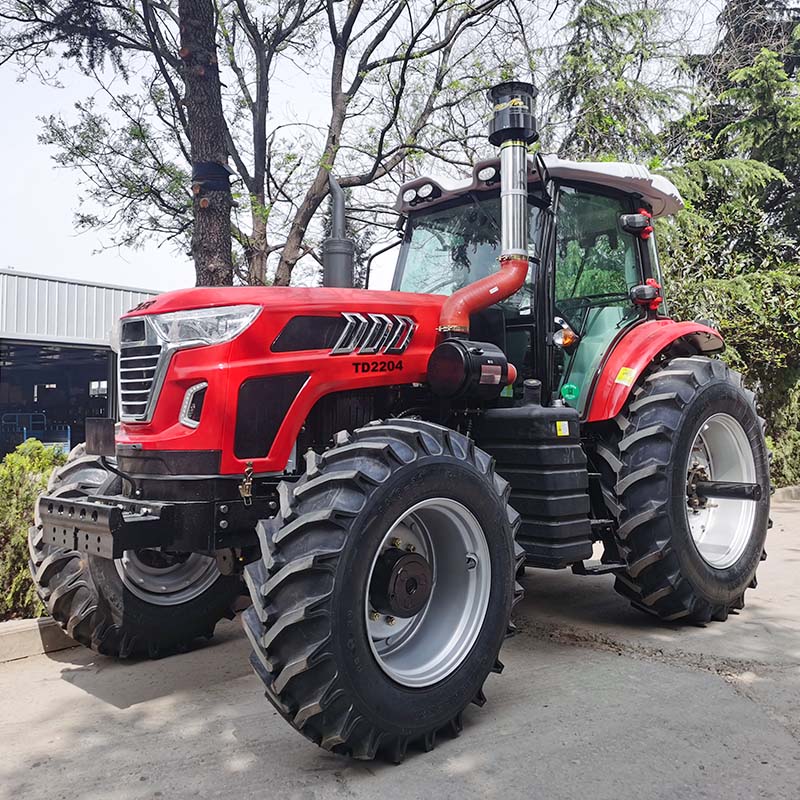

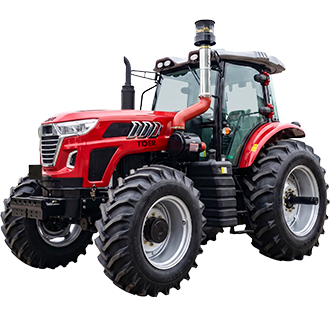

220HP Tractor
TD2204
特征
High-Output Power for Large-Scale Farming
Powered by a Shanghai Diesel engine with 162kW rated power, the TD2204 delivers outstanding torque reserve and strong pulling capability for large-scale agricultural operations. The engine is designed for high-load applications, providing efficient fuel consumption, reliable performance, and excellent economic benefits during long working cycles.
High-Capacity PTO for Professional Implement Matching
The independent PTO system delivers up to 141.6kW PTO power with 540/1000 rpm speeds, providing efficient power supply for high-demand implements. This allows the TD2204 to handle a wider range of professional agricultural equipment with improved productivity.
Wide-Speed Transmission for Flexible Operations
The 16F+16R gearbox provides optimized gear selection for different working conditions. With an operating speed range from 0.34 to 43.33km/h, the TD2204 combines precise low-speed control for field operations with efficient high-speed transport capability.
Advanced Hydraulic Control for Implement Management
Featuring an all-hydraulic front-wheel steering system and a powerful three-point hitch with a maximum lift capacity of 42.48kN, the TD2204 offers excellent control and implement handling capability. Multiple hydraulic control modes, including height adjustment and floating control, improve adaptability for various field operations.
Enhanced Traction with Agricultural Chevron Tires
Equipped with chevron-pattern agricultural tires, the tractor provides excellent ground engagement and pulling capability in demanding field conditions. The deep V-shaped tread design improves traction, reduces wheel slip, and enhances self-cleaning performance by effectively removing mud and soil buildup. Combined with the 4WD system, it ensures stable operation and reliable performance across wet, muddy, and uneven terrains.
规格
| Drive Type | — | 4WD |
| Overall Dimensions – Length | mm | 5685 |
| Overall Dimensions – Width | mm | 2450 |
| Overall Dimensions – Height | mm | 3220 |
| Wheelbase | mm | 2840 |
| Front Wheel Tread | mm | 2030 |
| Rear Wheel Tread | mm | 1700 |
| Minimum Service Weight | kg | 6210 |
| Transmission | — | 16F + 16R |
| Travel Speed – Forward | km/h | 0.34–43.33 |
| Travel Speed – Reverse | km/h | 0.34–43.33 |
| Steering System | — | Fully Hydraulic, Front-Wheel Steering |
| Engine Model | — | SC7H220G3 |
| Rated Power | kW | 162 |
| Rated Speed | rpm | 2200 |
| Front Tire Size | — | 18.4-26 |
| Rear Tire Size | — | 20.8-38 |
| Maximum Lifting Force | kN | ≥42.48 |
| Hydraulic Control Modes | — | Height Adjustment, Floating Control |
| Maximum Traction Force | kN | 43 |
| PTO Type | — | Rear-Mounted, Semi-Independent or Independent |
| PTO Speed | rpm | 540 / 1000 |
| PTO Power | kW | 141.6 |
| Front Counterweight | kg | 600 |
| Rear Counterweight | kg | 360 |
