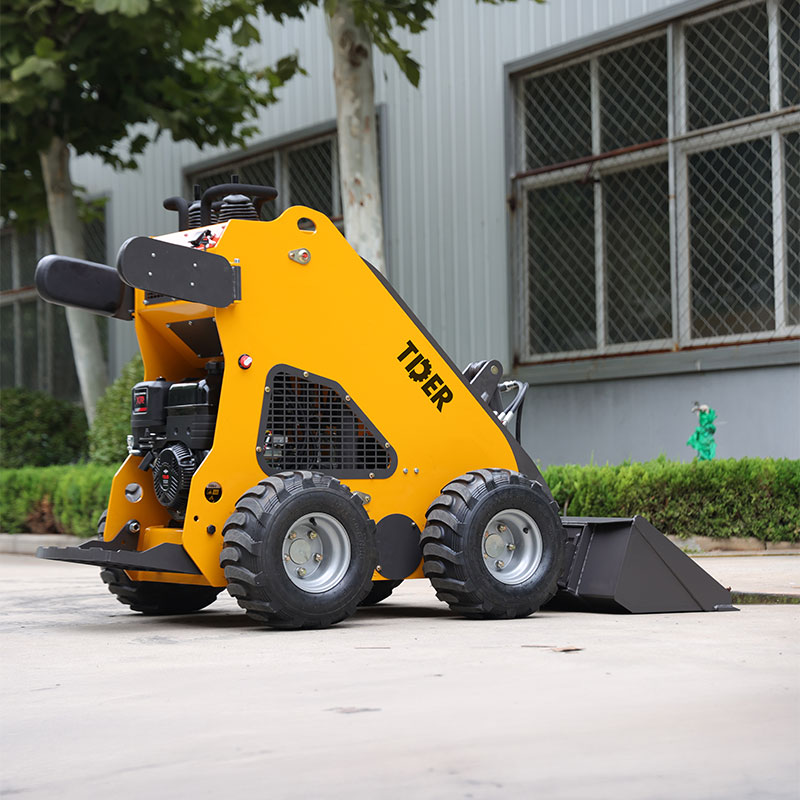

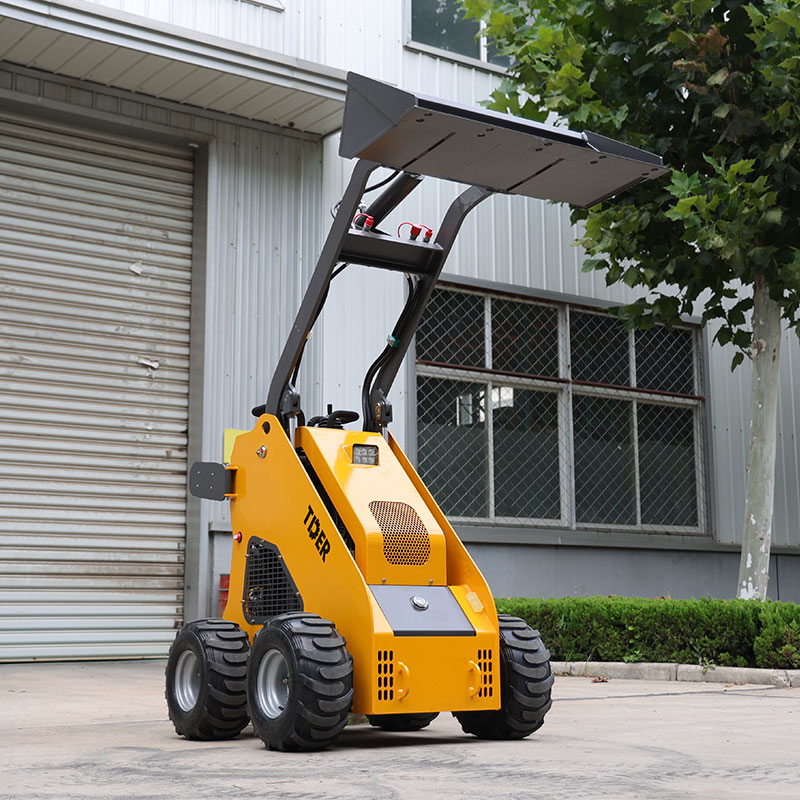

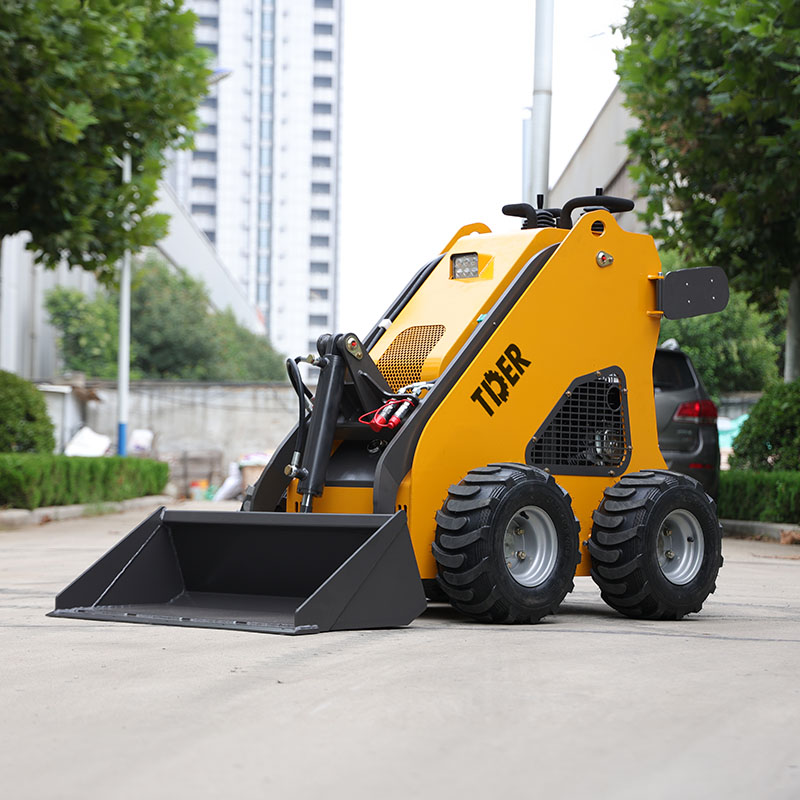

200kg Stand-On Skid Steer Loader
TDS13
Features
Stand-On Design for Faster Operation
Stand-on operator design allows faster mounting, better visibility, and higher efficiency in repetitive short-cycle operations, especially in landscaping, rental, and municipal maintenance applications.
Compact Wheeled Skid Steer for Confined Job Sites
TDER TDS13 compact skid steer loader is built for tight and hard-to-access environments where larger construction equipment cannot operate. Its wheeled skid steer system delivers excellent maneuverability, higher travel speed on hard surfaces, and minimal ground damage, making it ideal for both indoor and outdoor applications.
One Machine, Multiple Jobs

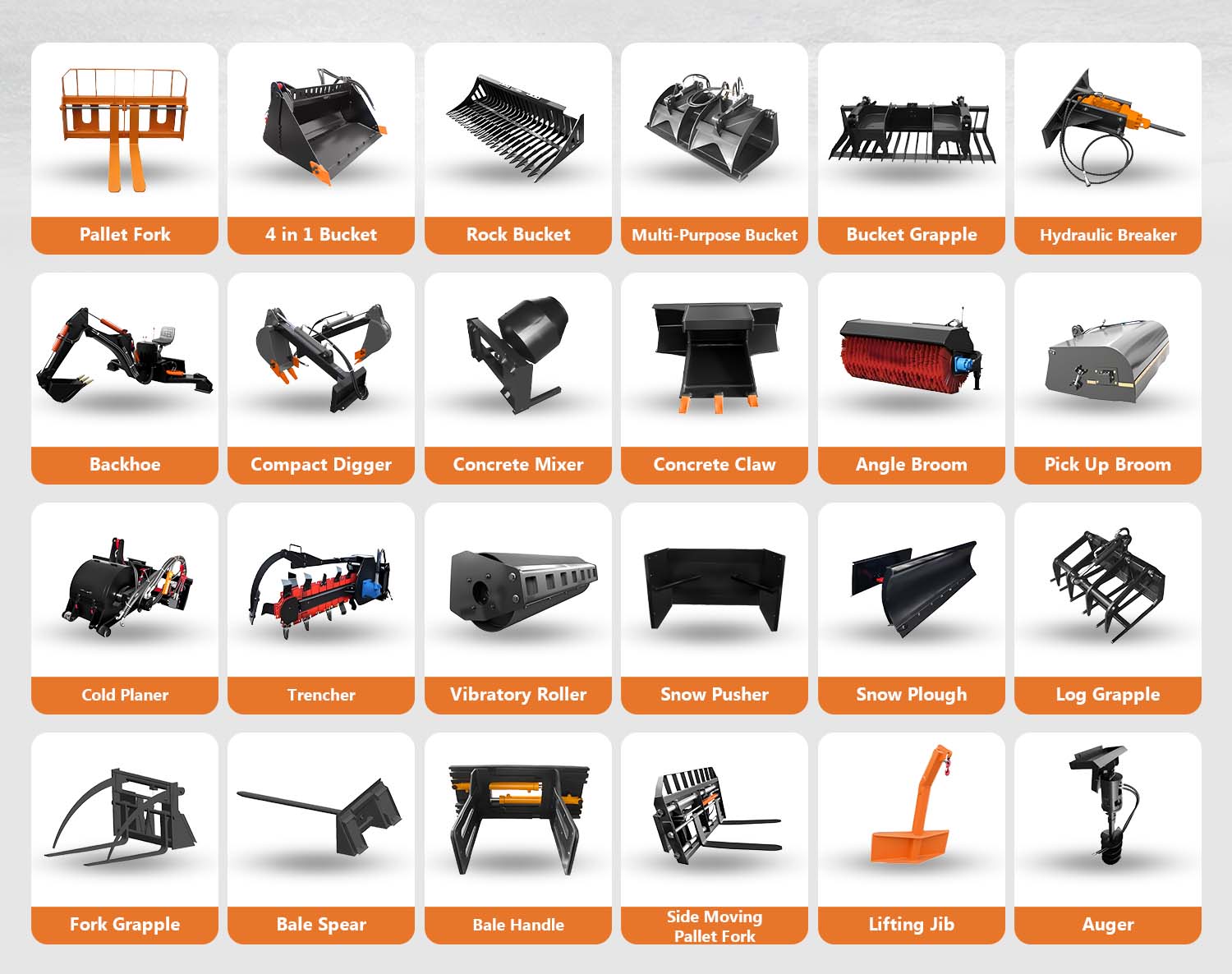

TDS13 is a true multi-function compact work platform, designed to handle a wide range of jobsite tasks with one machine. With 27+ compatible attachments, it can easily perform grading and leveling, digging, material handling and loading, demolition and breaking, as well as landscaping and maintenance work. This versatility allows operators to replace multiple machines on site, improving efficiency and maximizing return on investment.
EPA & Euro V Compliant Engine Options
Equipped with globally recognized gasoline or diesel engines, compliant with EPA and Euro V standards,ensuring environmental compliance, stable power output, fuel efficiency and long service life.
Durable Core Components
TDS13 is built with internationally recognized core components and a proven hydraulic drive system, ensuring smooth control, reliable power output, and excellent durability under continuous heavy-duty use.
Specifications
| Performance | Rated Load | kg | 200 | |
| Bucket Capacity | m³ | 0.13 | ||
| Max. Lift Weight | kg | 330 | ||
| Overall Dimensions | mm | 2110*1050*1345 | ||
| Working Speed | km/h | 0-5 | ||
| Rated Pressure | Mpa | 17 | ||
| Lifting Time | S | 4.2 | ||
| Descent Time | S | 3.1 | ||
| Dumping Time | S | 1.5 | ||
| Climbing Ability | % | 30 | ||
| Working Weight | kg | 690 | 700 | |
| Engine | Brand | Briggs&Stratton XR2100 | Rato R420 | |
| Type | Single-cylinder air-cooled petrol engine | |||
| Output Power | 13.5HP/3600rpm | 15HP/3600rpm | ||
| Fuel Consumption | L/h | ≤3.8 | ≤4.2 | |
| Starting Method | Electric start | |||
| Capacity | Fuel Tank | L | 6.6 | 6.7 |
| Engine Oil | L | 1.1 | ||
| Hydraulic Tank | L | 20 | ||
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
