2Ton Wheel Loader

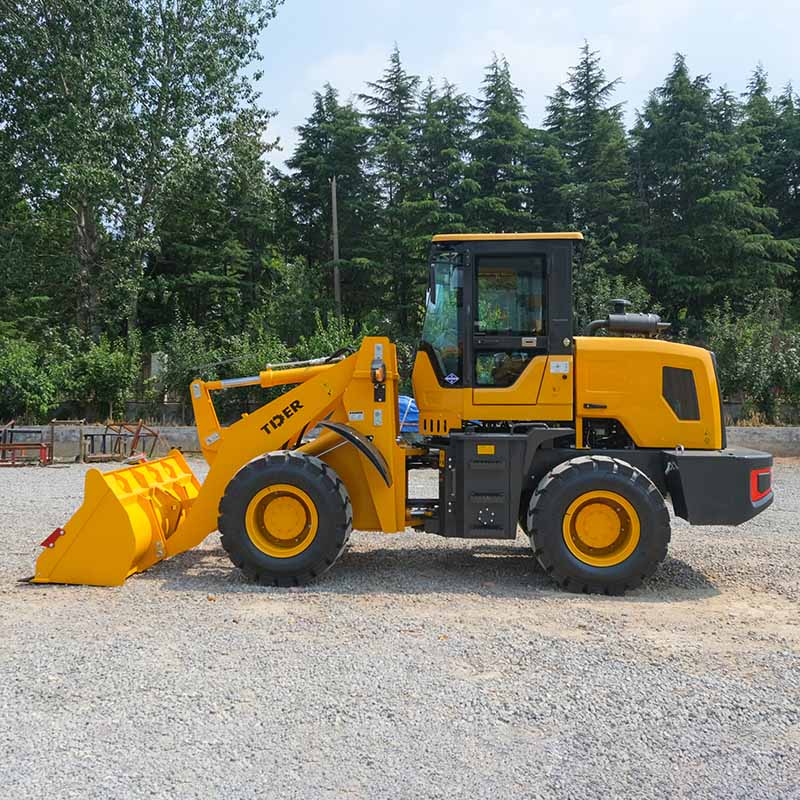

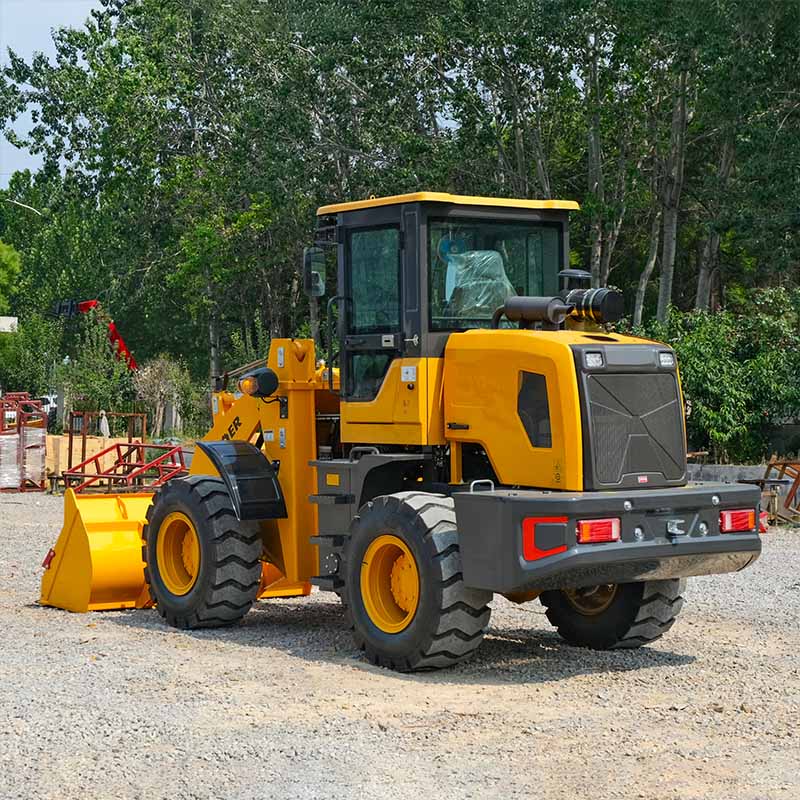

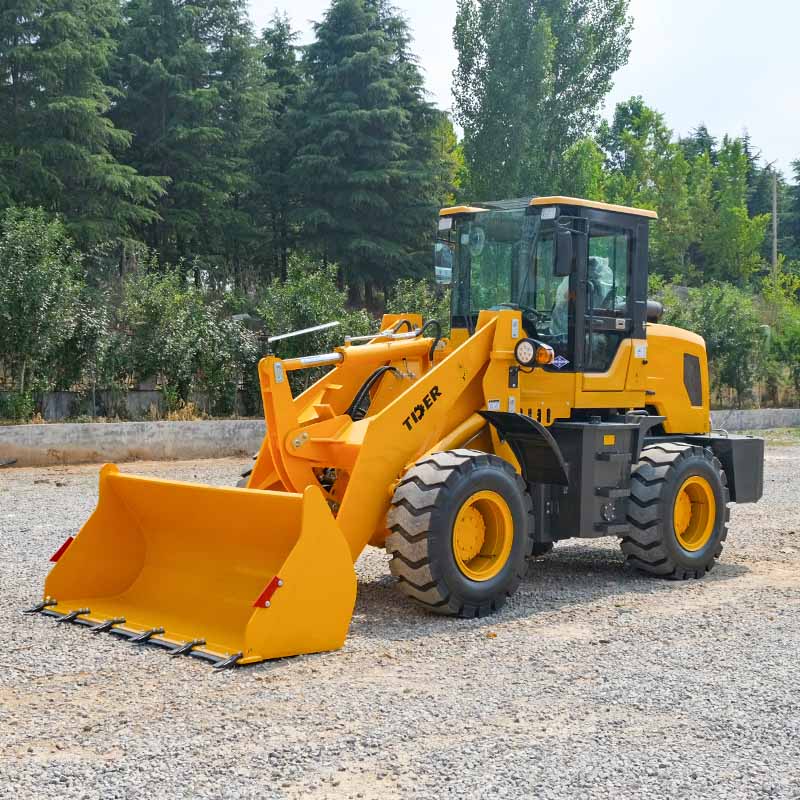

ZT920
Features
Engineering Wheel Loader for Heavy Duty Applications
ZT920 is designed for construction, quarry support, and material handling operations, delivering strong breakout force, stable lifting performance, and high durability for continuous heavy-duty working environments.
Yuchai Power System with Global Engine Options
Powered by a standard Yuchai 58KW engine, the system delivers stable torque output, fuel-efficient performance, and reliable operation for continuous engineering work, while optional engines including Cummins, Weichai, Xinchai, and Kohler are available in 3-cylinder and 4-cylinder configurations, all compliant with EPA and Euro V standards for global market flexibility.
Reinforced Structural Engineering Design
With 35mm reinforced boom and 6mm heavy-duty bucket structure, ZT920 delivers superior strength, wear resistance, and long service life, making it suitable for harsh construction and quarry applications.
Advance Heavy Duty Tire System
Equipped as standard with Advance heavy-duty 16/70-20 tires, a globally recognized industrial tire brand, the system delivers strong traction, excellent wear resistance, and reliable stability across rough construction sites and mixed terrain conditions, providing premium performance without additional cost.
Ergonomic Cabin & Suspension Seat Design
Standard suspension seat combined with an ergonomic cabin layout reduces vibration and operator fatigue, improving comfort, visibility, and productivity during long working hours in heavy-duty environments.
Specifications
| Rated Load | kg | 2000 |
| Bucket Width | mm | 2050 |
| Bucket Capacity | m³ | 1.2 |
| Overall Dimension | mm | 5650*2000*2750 |
| Operating Weight | kg | 5000 |
| Max. Dumping Height | mm | 3500 |
| Max. Dumping Distance | mm | 1000 |
| Wheel Base | mm | 2330 |
| Wheel Tread | mm | 1580 |
| Engine | Yunnei | |
| Rated Power | kw | 76 |
| Rated Speed | r/min | 2200 |
| Tire Size | 16/70--20 |
