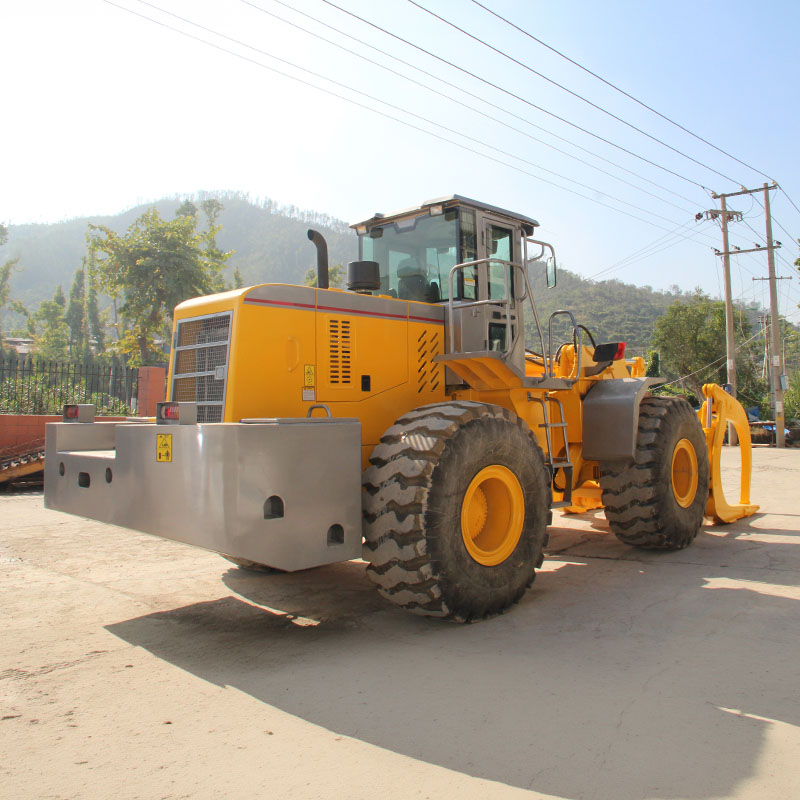

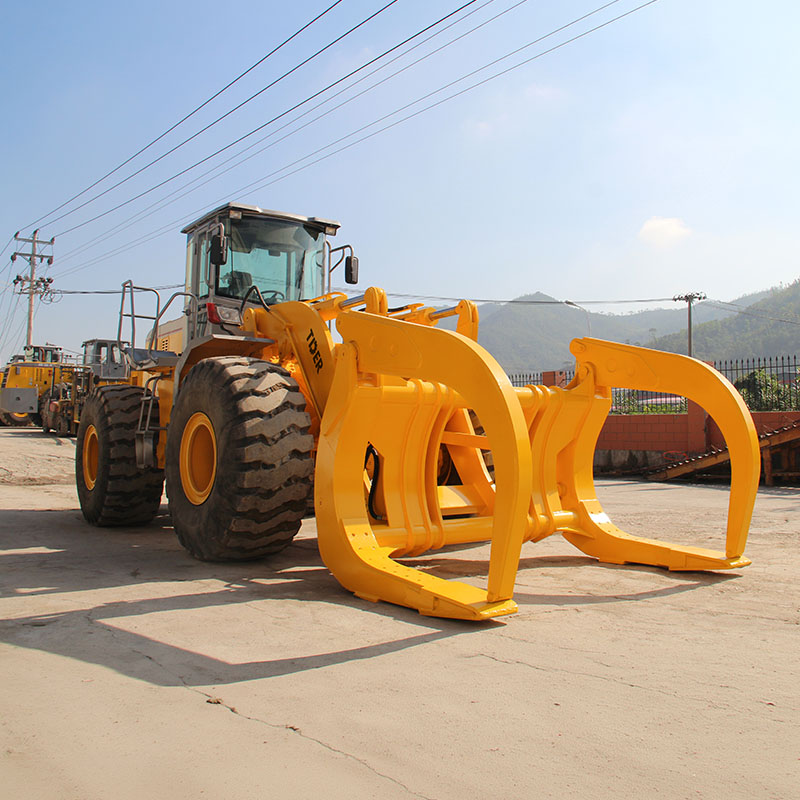

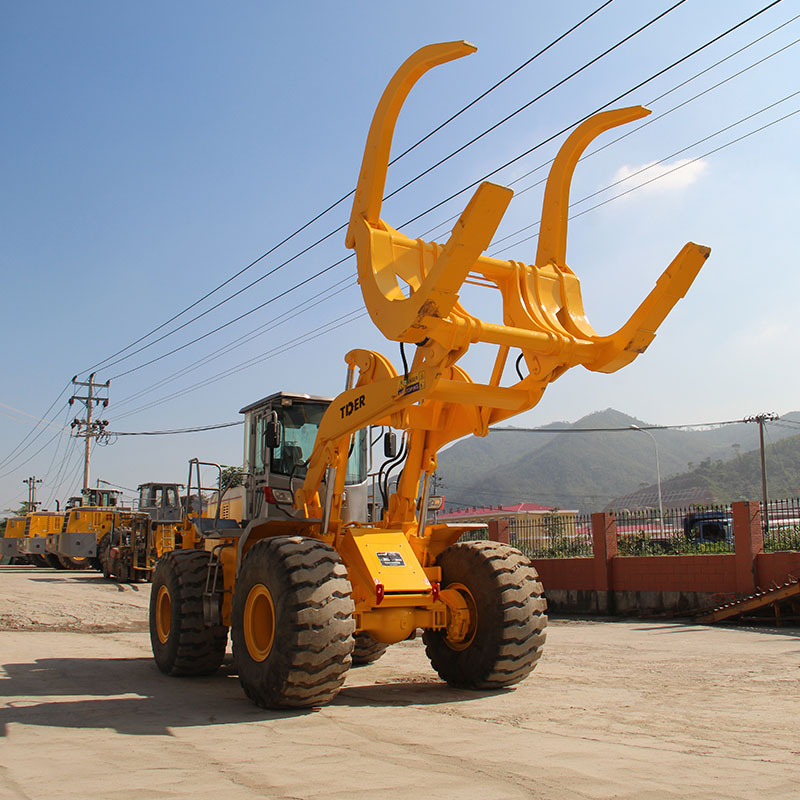

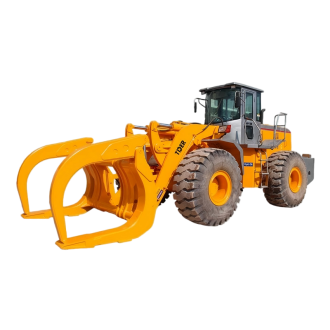

Name: 15 Ton Timber Loader for Forestry and Log Handling Work
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Efficient Power for Continuous Forestry Work

The 178kW Weichai engine is engineered to support long-duration timber loading tasks, providing consistent power delivery under frequent start-stop working cycles. It helps maintain smooth operation in demanding forestry environments where sustained productivity and response speed are required.

Improved Balance for Heavy Load Handling

Optimized rear counterweight layout enhances machine balance during lifting and loading operations, improving control precision and reducing forward tilt risk when handling heavy timber materials.

Wear-Resistant Off-Road Tire Performance

Equipped with Advance brand off-road tires, the machine delivers strong wear resistance and reliable traction in mud, gravel, and uneven forestry conditions, ensuring stable operation across complex jobsite environments.

Easy Maintenance with Side-Opening Hood

A side-opening engine hood design simplifies daily inspection and maintenance, reducing downtime and improving service efficiency for long-term field operation.

Comfortable Cab for Long Working Hours

The integrated air-conditioned cabin provides a comfortable working environment for long-hour operation, helping reduce operator fatigue and maintain productivity in demanding forestry applications.

Specifications

Operating Weight	kg	21000
Rated Load	kg	15000
Engine Model	-	Weichai
Rated Power	kW	178
Rated Rotate Speed	r/min	2000
Max. Torque	N.m	≥920
Max. Dumping Height	mm	3600
Forward Gear I Speed	km/h	0-11.5
Forward Gear II Speed	km/h	0-38
Reverse Gear I Speed	km/h	0-16
Grade Ability	°	≥25
Overall Length	mm	8120
Overall Width	mm	2870
Overall Height	mm	3300
Turning Angle	°	35
Wheelbase	mm	3550
Wheel Tread	mm	2510
Cycling Time	s	14
Tire Model	-	26.5-25

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
