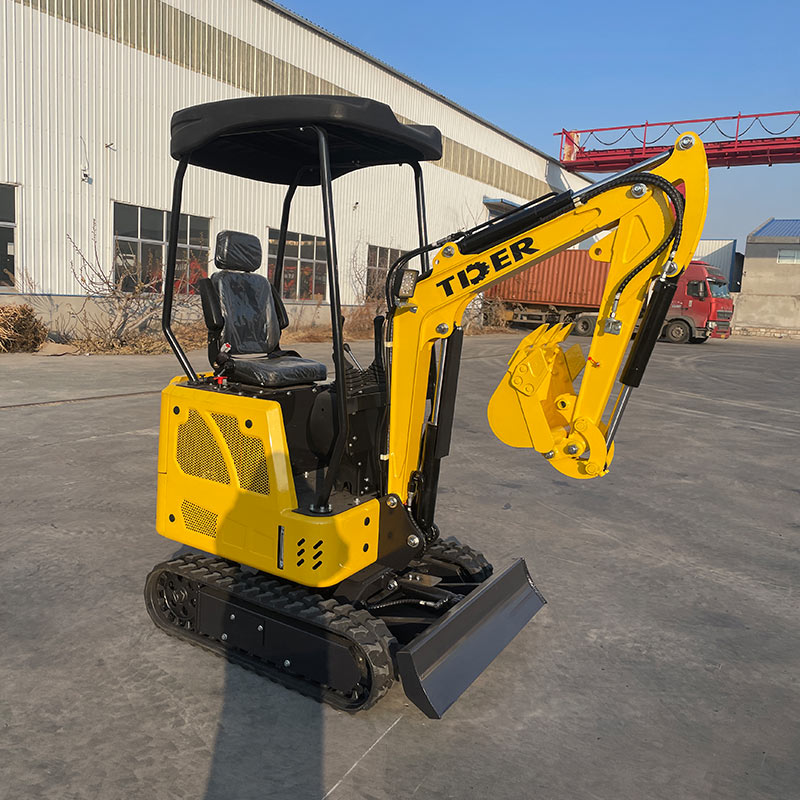

Name: 1.5 Ton Mini Excavator with Gasoline Engine
Availability: InStock

Features
Specifications
Product Showcase
Gallery
FAQs
Related Products

Features

Compact Yet Powerful Petrol Engine

The TCE15 is powered by a 10 kW EPA/Euro 5 petrol engine, delivering efficient, reliable performance in tight spaces while meeting global emission standards.

Japanese Shimadzu Hydraulic Pump for Consistent Digging Performance

The TCE15 is equipped with a Japanese Shimadzu PGP1010 gear pump, providing steady hydraulic oil delivery throughout the digging cycle. This allows the machine to maintain smooth bucket movement and predictable control when trenching, grading, or working around utilities, helping operators achieve cleaner and more accurate excavation results.

Quick-Attach Heavy-Duty Bucket

Equipped with a durable steel bucket and hydraulic quick coupler, operators can switch between attachments rapidly, enhancing productivity on varied tasks.

Convenient Refueling Design

A large metal fuel port with splash protection ensures fast, clean refueling, reducing downtime and improving overall operational efficiency.

Durable Hidden Components

Hidden travel and swing motors, combined with reinforced structural components, increase reliability and reduce maintenance risks, even under continuous heavy-duty use.

Specifications

Operating Weight	Kg	1500
Engine Model		Briggs & Stratton XR2100
Rated Power	Kw	10kw/14hp
Bucket Capacity	m³	0.03
Bucket Width	mm	400
Max Digging Force	Kn	12
System Working Pressure	Mpa	18
Swing Speed	rpm	12
Traveling Speed	km/h	2.1
Gradeability	°	30
Ground Pressure	Kpa	25
Operating Range
Max. Digging Distance	mm	2500
Max. Digging Depth	mm	1800
Max. Digging Height	mm	2590
Max. Dumping Height	mm	1850
Min. Turning Radius	mm	1190
Overall Dimensions
Overall Length	mm	2200
Overall Width	mm	1100
Overall Height	mm	2170
Min. Ground Clearance	mm	380
Track Ground Length	mm	1180
Track Width	mm	180

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

Gallery

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
