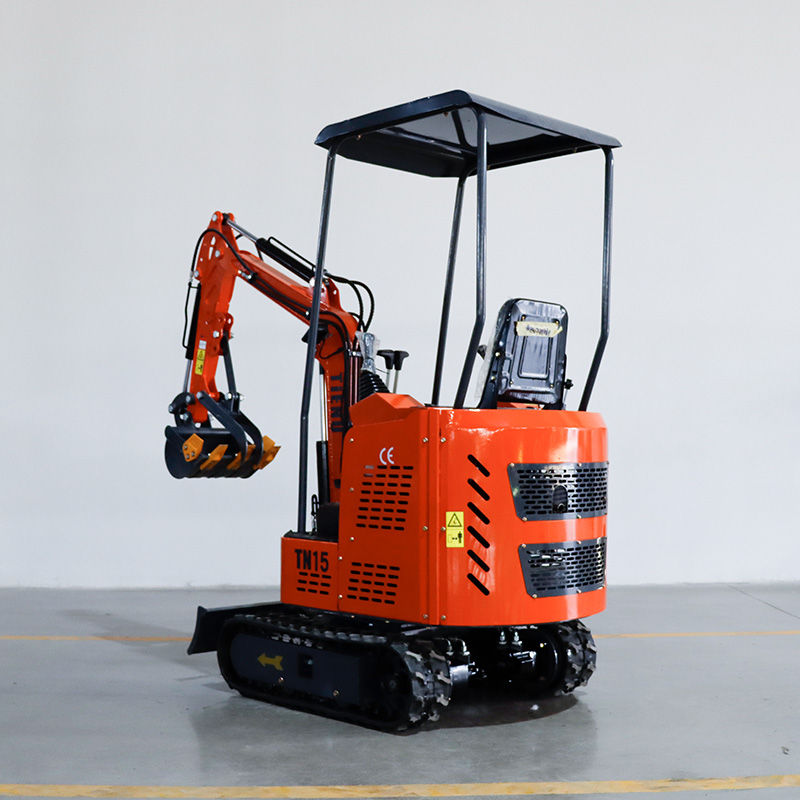

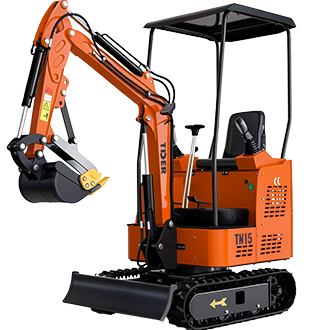

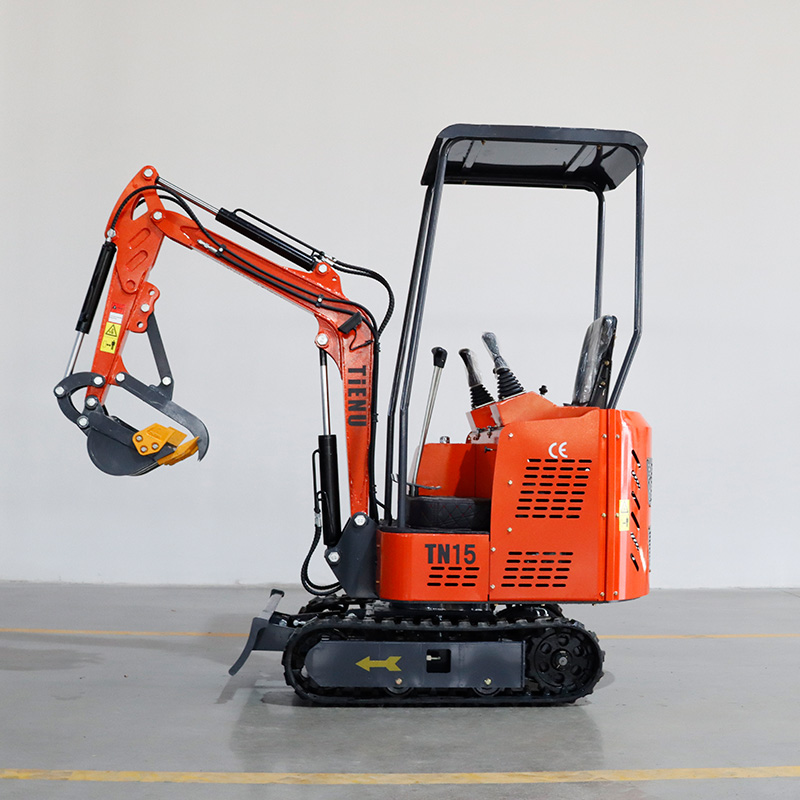

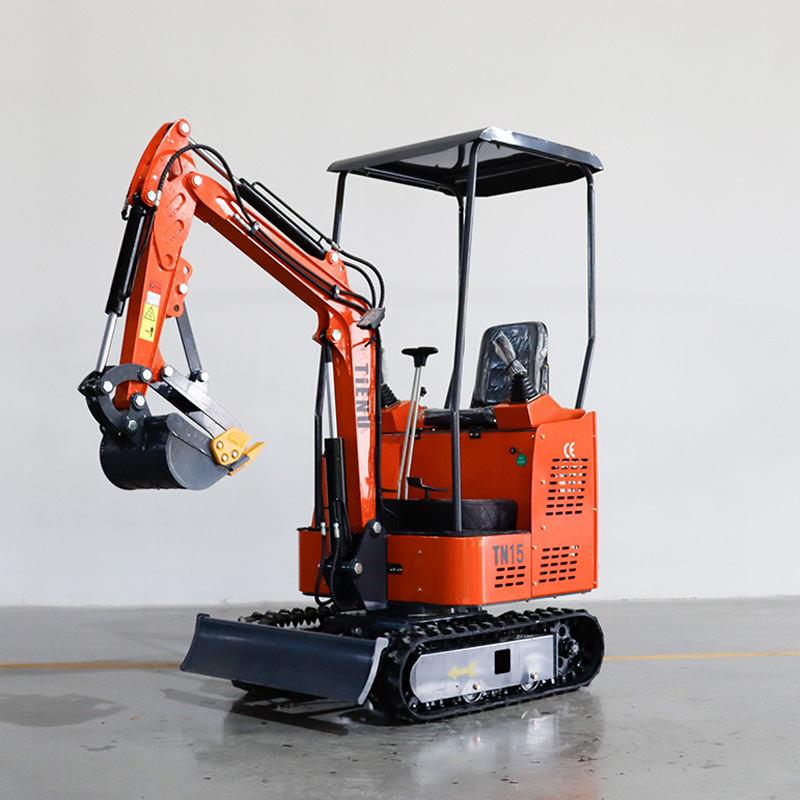

Name: 1.5 Ton Mini Excavator Built For Long-Term Durability
Availability: InStock

特征
规格
产品展示
画廊
常见问题解答
相关产品

特征

Compact And Stable Chassis For Different Terrains

The compact chassis combines stability with strong load-bearing capability, helping the TCE15 maintain a balanced working platform on uneven or changing terrain. Its stable design supports smooth and controlled operation in a variety of working conditions.

Wear-Resistant Tracks For Reliable Traction

The crawler tracks are made from wear-resistant materials to provide dependable traction and durability. They help the TCE15 maintain stable movement across different ground conditions while supporting consistent performance during daily excavation work.

Robust Canopy And Protective Cover For Longer Service Life

The durable canopy provides shelter from sun and rain, while the high-quality machine cover helps protect key components from external environmental factors. This practical protection contributes to machine durability and a more comfortable operator workspace.

Flexible Engine Options For Different Market Requirements

The standard YUPU 192 diesel engine provides a practical power solution for the 1.5-ton class. EPA and Euro V engine options are also available to meet different regional emission requirements, giving the TCE15 greater flexibility for international markets.

规格

Main Technical Specifications	Operating Weight	kg	1500
	Bucket Capacity	m³	0.025
	Travel Speed (Low / High)	km/h	0–2.0
	Gradeability	%	30
Working Range	Maximum Digging Height	mm	2610
	Maximum Dumping Height	mm	1850
	Maximum Digging Depth	mm	1650
	Maximum Digging Radius	mm	2850
Side Swing	Side Swing	—	Optional
Side Swing	Side Swing Angle (Left / Right)	°	30
Chassis	Chassis Telescopic Function	—	Optional
Overall Dimensions	Overall Length	mm	2850
	Overall Width	mm	1000
	Overall Height	mm	2210
	Dozer Blade Width / Height	mm	1000 / 200
Engine	Engine Brand	—	Yupu
	Engine Model	—	XL192F
	Maximum Power	kW	7.5
	Maximum Speed	rpm	3000
	Number of Cylinders	—	1
	Cooling Method	—	Air-Cooled
	Engine Oil Change Quantity	L	1.65
	Fuel Type	—	Diesel
Hydraulic System	Main Pump Type / Model	—	Gear Pump / 0803
	Rated Set Pressure	MPa	23.5
	Maximum Main Pump Flow Rate	L/min	23.4
	Multi-Way Valve	—	8-Spool Hydraulic Pilot-Controlled Multi-Way Valve
	Rated Set Pressure	MPa	18
	Travel Hydraulic Motor Model	—	BM6K-315
	Swing Hydraulic Motor Model	—	BM2-315
Capacities	Fuel Tank Capacity	L	7
Capacities	Hydraulic Oil Tank Capacity	L	18

*注：由于产品不断升级改进，规格和配置如有变更，恕不另行通知。所有信息仅供参考，部分功能为选配。请联系我们的国际销售团队进行确认。最终规格和配置以双方签署的正式合同为准。

产品展示

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

画廊

常见问题解答

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.

1.5 Ton Mini Excavator Built For Long-Term Durability
