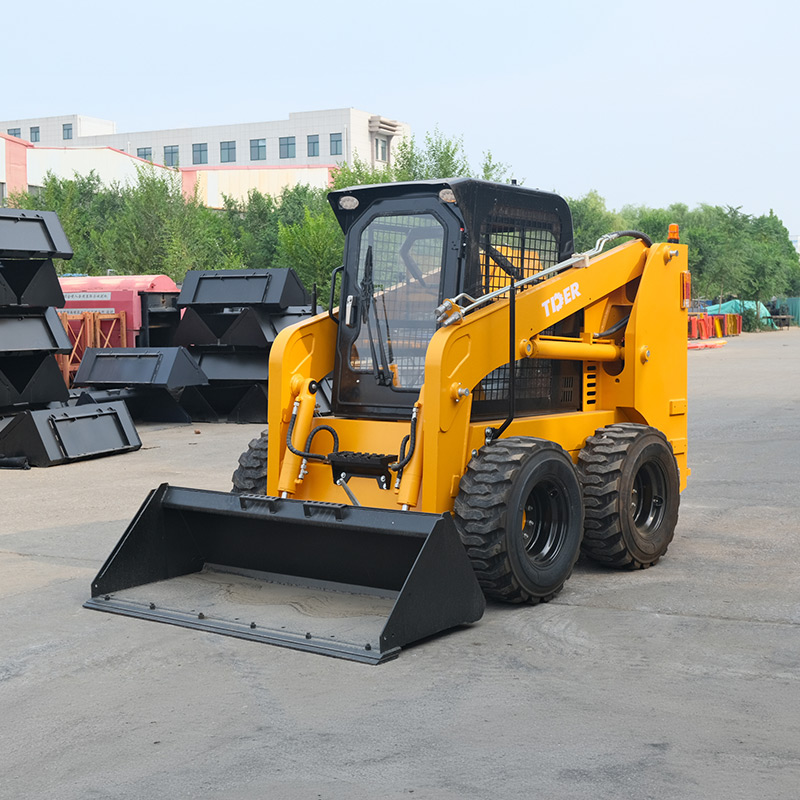

Name: 1200kg Wheeled Skid Steer with Weichai Engine and European System
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

Engine & Exhaust Protection System for Global Operation

Powered by a Weichai WP4.1G102E301 74kW engine, TDS100 features a vertically mounted exhaust layout that improves operator safety and complies with international emission requirements.

Working Efficiency & Durable Control System

Chrome-plated large-bore hydraulic cylinders provide stable and consistent force output under heavy load conditions, ensuring smooth performance during lifting and digging operations.

Anti-slip, waterproof pedals enhance operator control reliability in dust, mud, and wet working environments, improving safety and precision during long working hours.

The standard quick coupler system allows fast and easy attachment changes, enabling the machine to switch between multiple tasks efficiently and reducing downtime on job sites.

Core Hydraulic Architecture with Premium European Components

TDS100 integrates Rexroth hydraulic motors and pumps (German core components) with an Italian HB valve system, forming the central hydraulic architecture that connects engine power with all working functions. This integrated design ensures efficient power transmission from the engine to driving, lifting, and attachment systems, enabling the machine to operate as a unified and coordinated working platform rather than independent hydraulic functions.

Operator Comfort & Vibration Isolation System

TDS100 is equipped with a fully adjustable air-ride suspension seat with integrated seat belt, combined with wide anti-slip sealed pedals, providing stable operator positioning and reducing fatigue during long working hours.

The seat system effectively isolates vibration and impact, while the pedal design ensures precise and confident control even in dusty or wet working environments.

Specifications

Operating Load	Kg	1200
Max Speed	Km/H	12\18
Rated Flux	L/Min	75
High Flow Flux	L/Min	140
Tire Model		12-16.5
Self Weight Bucket	Kg	4000
Bucket Capacity	M³	0.55
Overall Operating Height	mm	4070
Hheight To Top Of Cab	mm	2160
Without Bucket Length	mm	2880
Overall Length With Bucket	mm	3580
Dumping Height	mm	2450
Width	mm	1880
Bucket Width	mm	1880
Height To Bottom Of Level Bucket	mm	2983
Dumping Angle At Maximum Height	°	40
Height To Bucket Hinge Pin	mm	3150
Dumping Reach	mm	700
Rollback Of Bucket On Ground	°	30
Rollback Of Bucket At Full Height	°	104
Wheelbase	mm	1185
Ground Clearance	mm	205
Angle Of Departure	°	20
Front Turning Radius Without Bucket	mm	1278
Front Tuning Radius	mm	2144
Rear Tuning Radius	mm	1857
Rear Axle To Bumper	mm	1082
Tread Width	mm	1500
Engine		Weichai WP4.1G102E301
Rated Power	Kw	74
Fuel Tank Capacity	L	90

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
