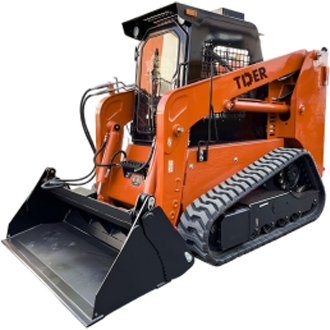

1200kg Track Skid Steer Loader
DS100
Features
Standard Weichai Engine with Optional Global Power Choices
DS100 comes standard with the renowned Weichai WP4.1G102E301 engine delivering 74 kW, ensuring reliable performance and durability under continuous heavy-duty operation. For added flexibility, operators can also choose optional engines from Cummins, Kubota, Yanmar, and Perkins to meet regional emission standards, fuel preferences, and service network availability.
Durable Tracks and Robust Structure
The 320×86 reinforced tracks provide excellent traction, stability, and load distribution across soft, uneven, or rugged terrain. Combined with the reinforced structural frame, this ensures safe and efficient operation during heavy-duty tasks.
Optimized Cooling for Continuous Heavy-Duty Operation
A dedicated hydraulic and engine cooling system maintains optimal fluid viscosity and prevents overheating. This protects key components and ensures consistent performance even during prolonged heavy-duty operation.
Enclosed Cab with Optional Comfort and Visibility Upgrades
DS100 features a fully enclosed cab that shields operators from dust, wind, and debris, creating a safer and more comfortable working environment. For added comfort, operators can choose air conditioning, heating, and low-temperature start packages, along with a luxury air-suspension seat for reduced fatigue during long shifts. LED work lights and an optional rearview camera system enhance visibility, while dual-speed drive motors provide precise maneuverability in tight workspaces.
Specifications
| Operating Load | Kg | 1200 |
| Max Speed | Km/H | 12\18 |
| Rated Flux | L/Min | 88 |
| High Flow Flux | L/Min | 140 |
| Tire Model | 320X86 | |
| Self Weight Bucket | Kg | 4800 |
| Bucket Capacity | M³ | 0.55 |
| Overall Operating Height | mm | 4800 |
| Hheight To Top Of Cab | mm | 2160 |
| Without Bucket Length | mm | 3000 |
| Overall Length With Bucket | mm | 3700 |
| Dumping Height | mm | 2450 |
| Width | mm | 1994 |
| Bucket Width | mm | 2030 |
| Height To Bottom Of Level Bucket | mm | 2983 |
| Dumping Angle At Maximum Height | ° | 40 |
| Height To Bucket Hinge Pin | mm | 3150 |
| Dumping Reach | mm | 700 |
| Rollback Of Bucket On Ground | ° | 30 |
| Rollback Of Bucket At Full Height | ° | 104 |
| Wheelbase | mm | 1500 |
| Ground Clearance | mm | 200 |
| Angle Of Departure | ° | 20 |
| Front Turning Radius Without Bucket | mm | 1365 |
| Front Tuning Radius | mm | 2200 |
| Rear Tuning Radius | mm | 1742 |
| Rear Axle To Bumper | mm | 938 |
| Tread Width | mm | 1654 |
| Engine | Weichai WP4.1G102E301 | |
| Rated Power | Kw | 74 |
| Fuel Tank Capacity | L | 90 |

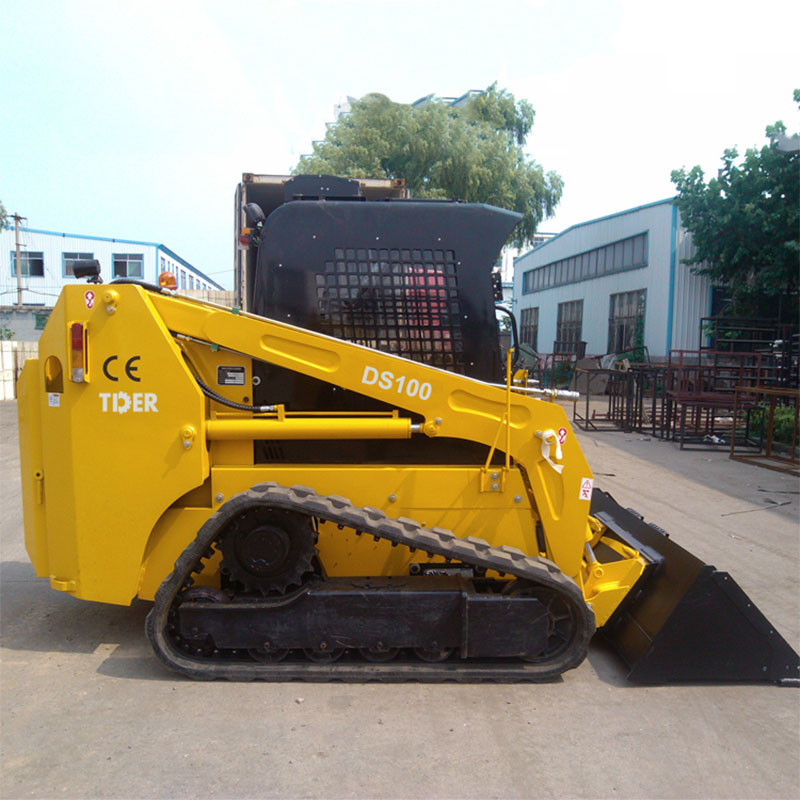

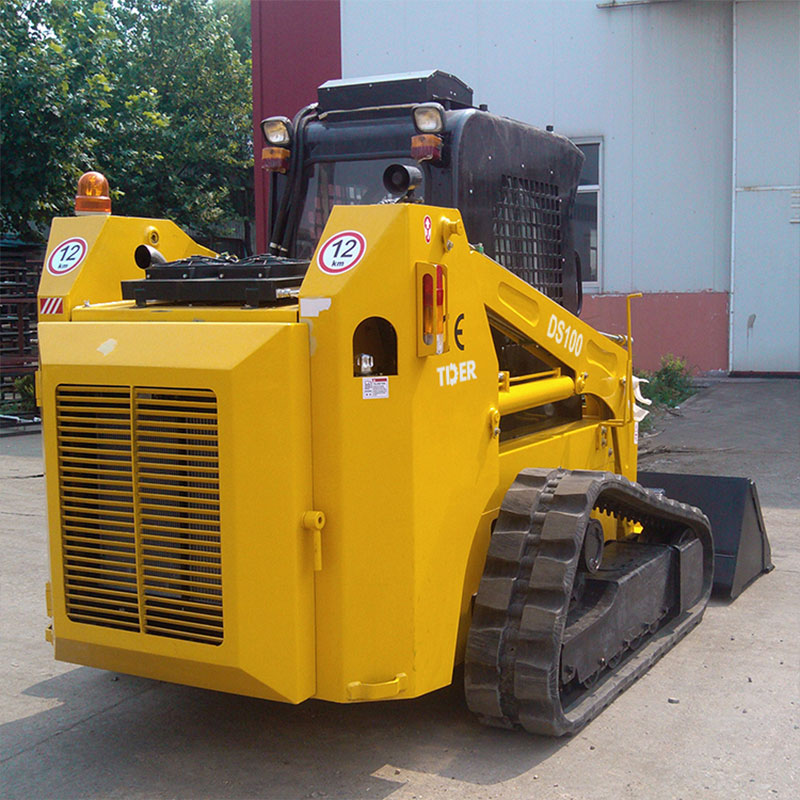

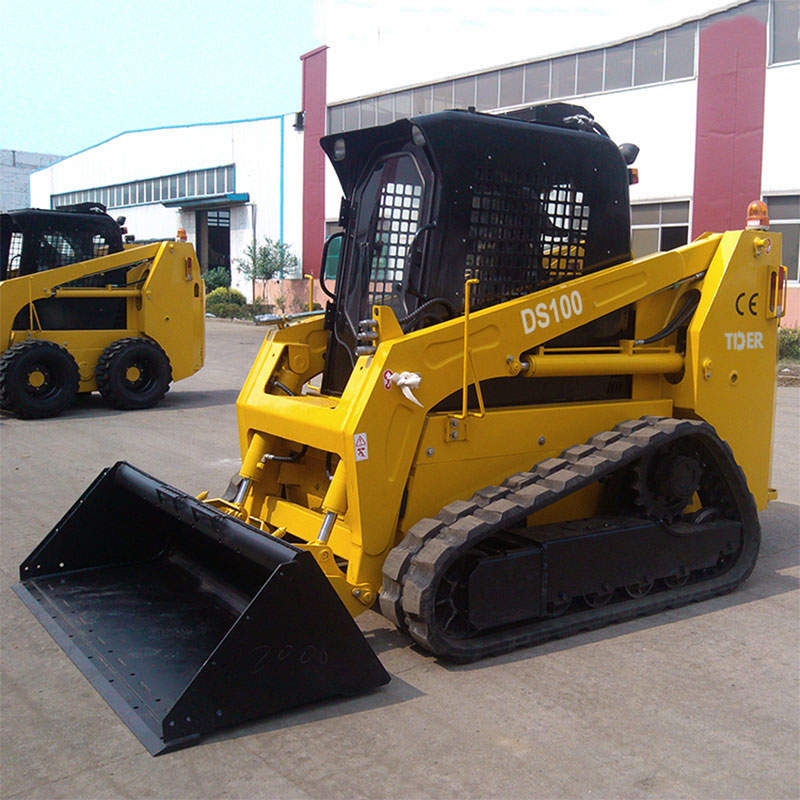

Product Showcase
