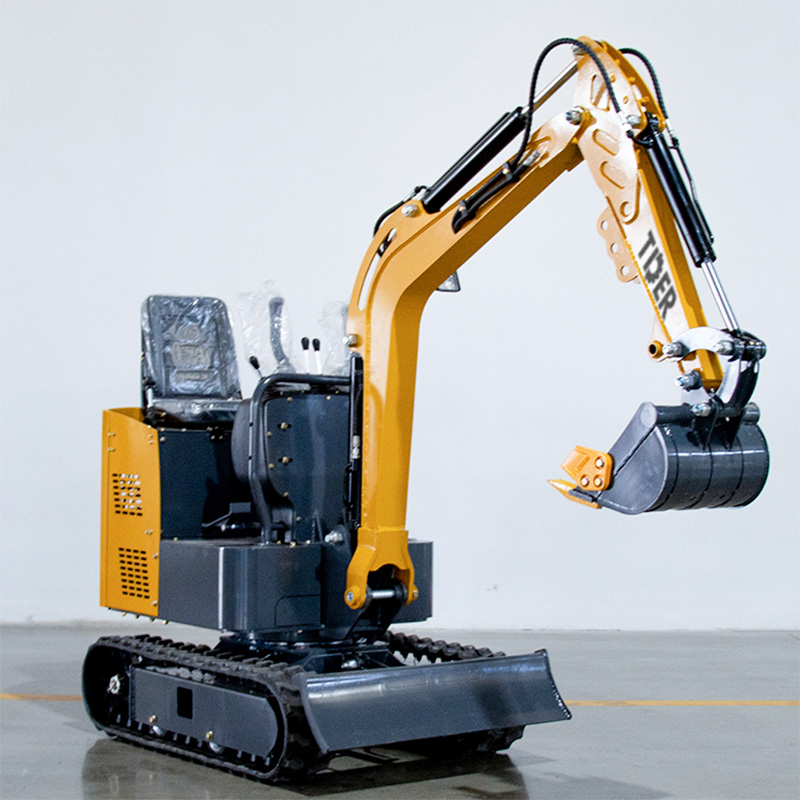

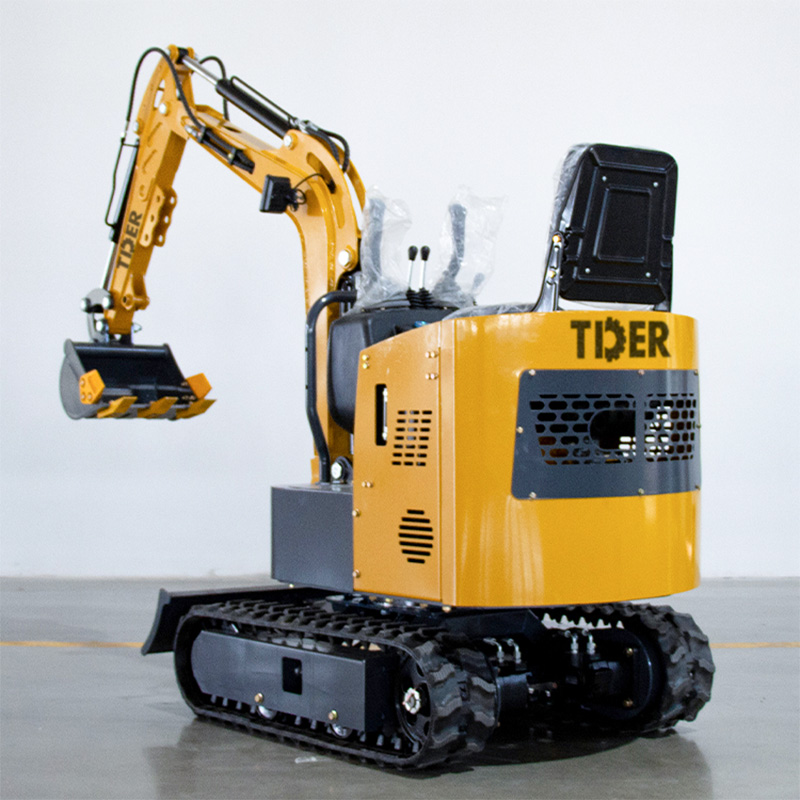

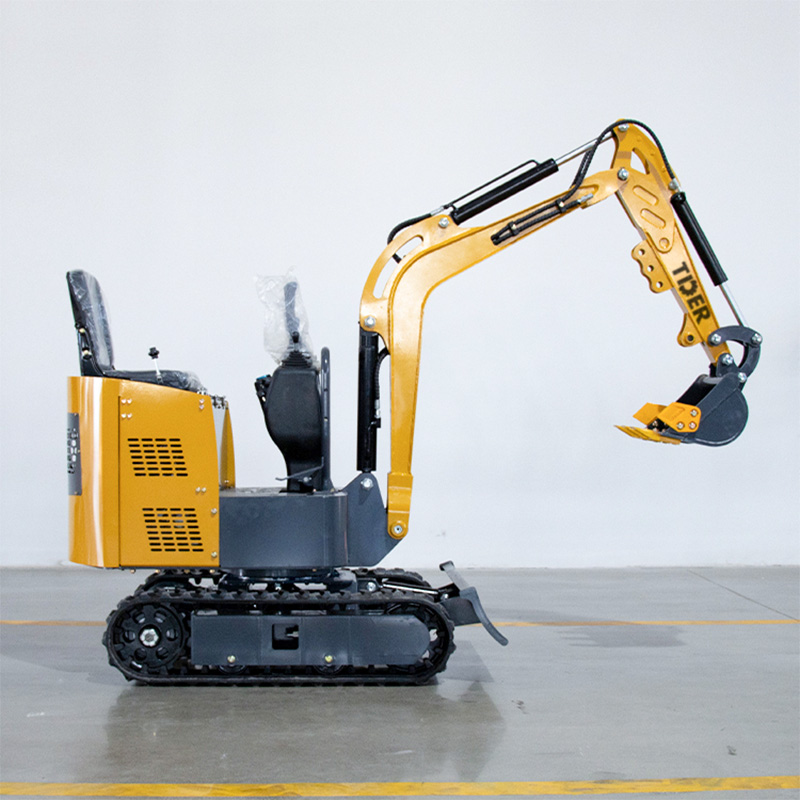

Name: 1.2 Ton Mini Excavator For Narrow Sites
Availability: InStock

特征
规格
产品展示
画廊
常见问题解答
相关产品

特征

Compact Size For Narrow-Site Excavation

The TCE12 is a 1.2-ton diesel crawler mini excavator designed for work in narrow and restricted areas. Its compact size and flexible operation make it suitable for landscaping, utility work, small construction projects and other jobs where larger excavators have limited access. Its crawler undercarriage also provides practical mobility across different working surfaces.

Simple Mechanical Controls For Easy Operation

The TCE12 uses mechanical joystick controls with a straightforward operating system, making daily operation simple and intuitive. This practical configuration is well suited to customers who prioritize easy machine control and uncomplicated operation for routine digging, trenching and material-handling tasks.

Low-Noise Engine With A More Environmentally Friendly Design

The TCE12 is powered by a YUPU 192 China II diesel engine featuring an updated cylinder head and piston design. The engine is developed to reduce operating noise while supporting efficient and stable performance, providing a practical power solution for small-scale excavation work.

Protected Travel Motor Lines Reduce Damage Risk

The travel motor hydraulic lines are routed through a hidden design to reduce their exposure to external impact, debris and accidental damage. This helps protect an important part of the travel system when the TCE12 is working close to walls, vegetation, construction materials or other obstacles.

High-Strength Working Equipment For Long Service Life

The working equipment uses high-tensile-strength steel plates, while key structural areas adopt cast and forged components for improved strength and durability. Together with the protected hydraulic layout and robust working structure, the TCE12 is designed to provide reliable service through repeated digging operations.

规格

Main Technical Specifications	Operating Weight	kg	1200
	Bucket Capacity	m³	0.025
	Travel Speed (Low / High)	km/h	0–2.0
	Gradeability	%	30
Working Range	Maximum Digging Height	mm	2600
	Maximum Dumping Height	mm	1750
	Maximum Digging Depth	mm	1600
	Maximum Digging Radius	mm	2700
Side Swing	Side Swing	—	Optional
Side Swing	Side Swing Angle (Left / Right)	°	30
Chassis	Chassis Telescopic Function	—	Optional
Overall Dimensions	Overall Length	mm	2750
	Overall Width	mm	930
	Overall Height	mm	2180
	Dozer Blade Width / Height	mm	930 / 200
Engine	Engine Brand	—	Yupu
	Engine Model	—	XL192F
	Maximum Power	kW	7.5
	Maximum Speed	rpm	3000
	Number of Cylinders	—	1
	Cooling Method	—	Air-Cooled
	Engine Oil Change Quantity	L	1.65
	Fuel Type	—	Diesel
Hydraulic System	Main Pump Type / Model	—	Gear Pump / 06
	Rated Set Pressure	MPa	25
	Maximum Main Pump Flow Rate	L/min	23.4
	Multi-Way Valve	—	8-Spool Multi-Way Valve
	Rated Set Pressure	MPa	18
	Travel Hydraulic Motor Model	—	BM6K-315
	Swing Hydraulic Motor Model	—	BM2-315
Undercarriage	Rubber Track (Width × Pitch × Number of Links)	mm / links	180 × 72 × 37
Capacities	Fuel Tank Capacity	L	5.5
Capacities	Hydraulic Oil Tank Capacity	L	18

*注：由于产品不断升级改进，规格和配置如有变更，恕不另行通知。所有信息仅供参考，部分功能为选配。请联系我们的国际销售团队进行确认。最终规格和配置以双方签署的正式合同为准。

产品展示

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

画廊

常见问题解答

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
