Name: 1100kg Skid Steer Loader for Heavy Duty Construction Use
Availability: InStock

Features
Specifications
Product Showcase
FAQs
Related Products

Features

German Hydraulic Core Components for Stable Heavy-Duty Output

Equipped with Inlay dual-speed hydraulic motors and German Inlay tandem servo pumps, combined with an Inlay valve system, the hydraulic setup delivers stable pressure control and efficient power transmission under continuous heavy-load operation. This configuration improves machine responsiveness and long-term working reliability in demanding job site conditions.

Engine Solutions Matched to Different Working Priorities

TDS75 is powered by a 65kW high-pressure common rail engine and supports optional engine configurations including Euro V Xinchai, Kubota, and Yanmar models.

Different engine options allow customers to choose between priorities such as fuel efficiency, emission compliance, maintenance familiarity, or long-hour continuous operation, helping the machine better match local working habits and operating conditions.

Dual-Speed Travel System for Faster Site Transfer Efficiency

The standard dual-speed drive system improves machine mobility between working areas, helping reduce unnecessary travel time on large job sites while maintaining stable machine control.

Operator Comfort Package for Long Working Hours

The enclosed cab comes standard with: heater system, cooling fan, rearview camera, reversing buzzer and LED lighting. These features improve operator visibility, awareness, and comfort during long-hour or low-visibility operations.

Imported Air Filtration & Enlarged Cooling System

The machine uses an imported air filtration system combined with an enlarged aluminum radiator to improve dust protection and heat dissipation efficiency. This helps maintain stable engine performance and reduces maintenance pressure in dusty or high-temperature environments.

Specifications

Rated capacity	kg	1100
Max. Speed	km/h	11.2
Max. Load	kg	2200
Lifting Type		Radial
Total Cycling Time	s	9
Bucket Capacity	m³	0.53
Pressure of Working System	bar	235
Rated Flux	L/min	69
Self-weight With Bucket	kg	3700
Discharge height	mm	2465
Discharge distance	mm	610
Power type		Diesel
Control type:		Manual control
Fuel Tank Capacity	L	100
Overall. operating height	mm	4086
Height to Bucket Hinge Pin	mm	3150
Height to Top of Cab	mm	2028
Height to Bottom of Level Bucket	mm	2960
Overall length without bucket	mm	2833
Overall length with bucket	mm	3623
Dumping Height	mm	2465
Dumping Reach	mm	610
Rollback of Bucket On Ground	°	30°
Ground Clearance	mm	210
Angle Of Departure	°	26°
Front turning radius without attachments	mm	1365
Front turning radius	mm	2210
Rear turning radius	mm	1786
Overall width without bucket	mm	1850
Overall width with bucket	mm	1980
Engine model		Quanchai 4C6-88C33
Power	kw	65
Rated speed	rpm	2400
displacement	L	3.47
Number of cylinder		4
Tubeless tire		12-16.5

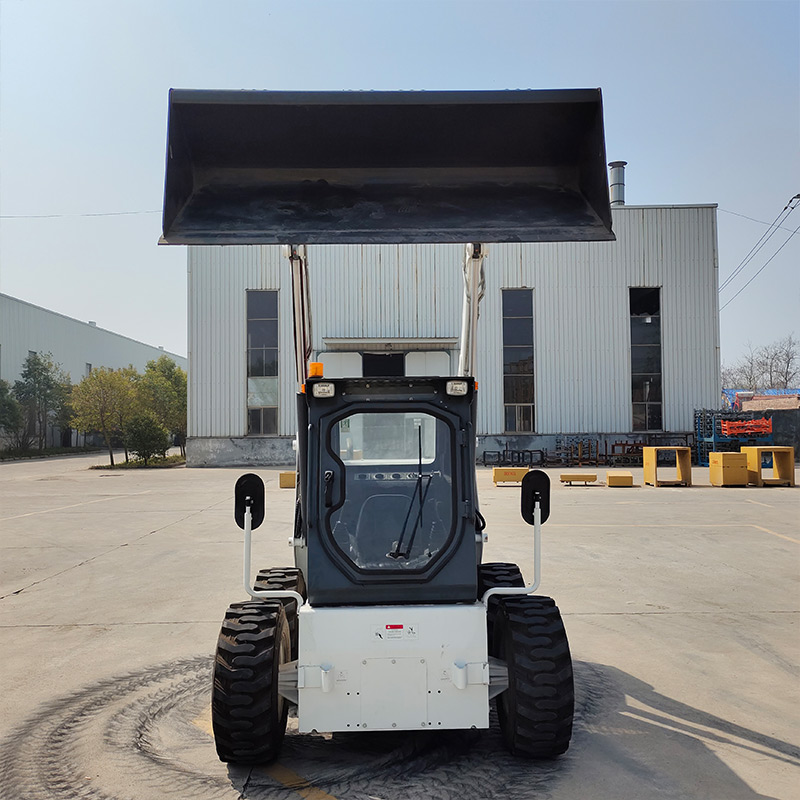

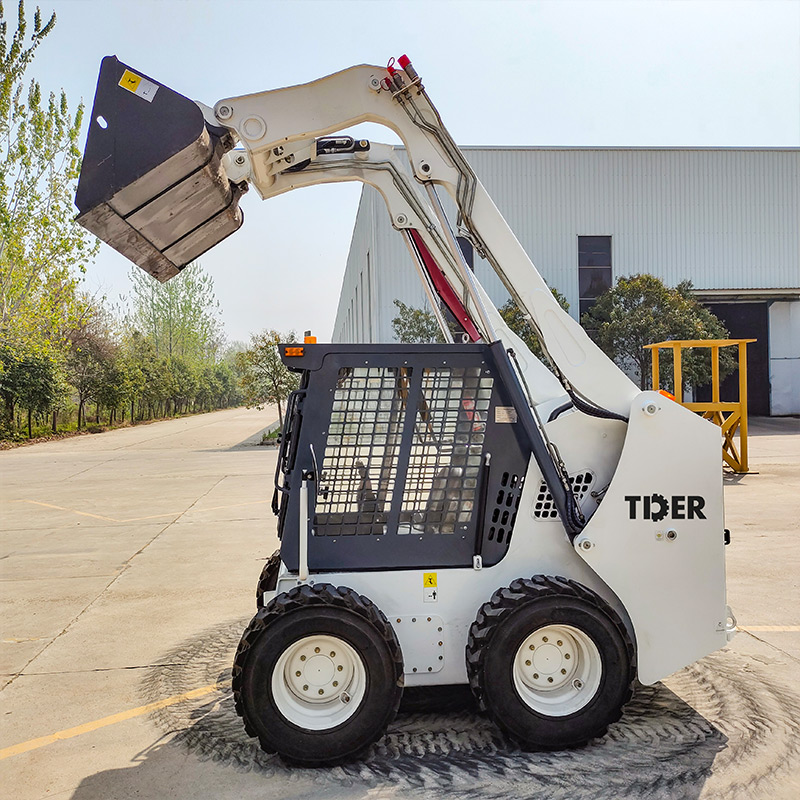

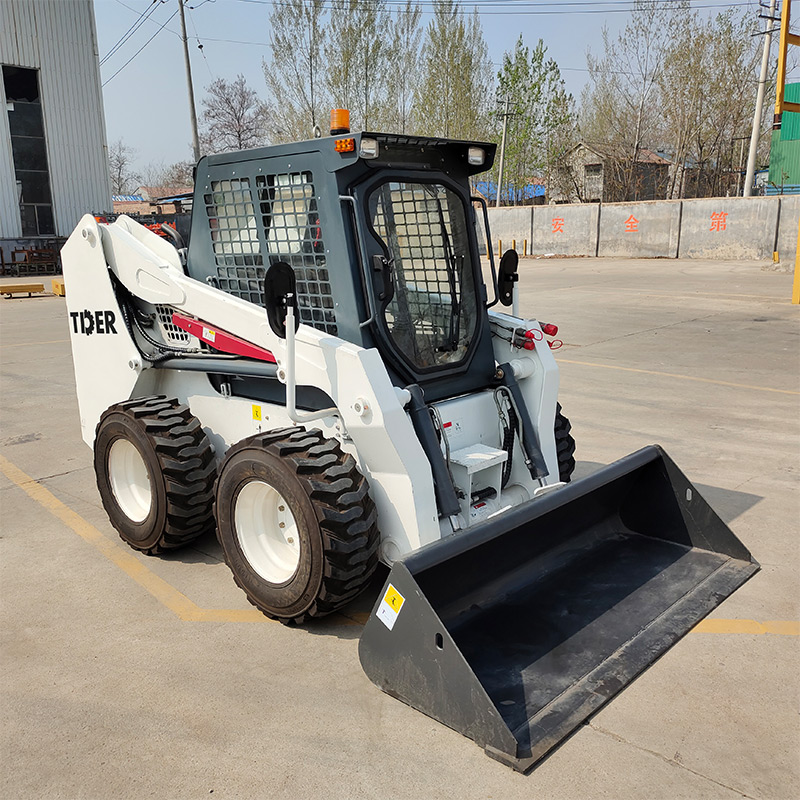

Product Showcase

Why Choose TDER?

20+ Years of Expertise

158 Countries Served

42,000㎡ of Advanced Production

Over $91M+ Annual Sales

FAQs

Are you a manufacturer or trading company?

TDER is a China-based manufacturer with over 20 years of experience in machinery production and export. Our machines have been exported to 158 countries. We have our own factory covering 42,000 m², integrating R&D, manufacturing, and global sales.

What payment terms do you accept?

We support T/T, L/C, and O/A. Usually, a 30% deposit is required, and the remaining 70% balance should be paid before delivery.

I am a first-time importer and don’t know the import process. What should I do?

We provide full guidance for the import process, from documentation to customs clearance, to ensure a smooth transaction.

What is the delivery time?

Normally, it takes 15–30 days to ship after receiving your deposit. Standard products in stock can be shipped immediately, while customized products may require longer, depending on your order requirements.

What about warranty?

Generally, we offer a 12-month or 2,000 working hours warranty, whichever comes first. Some products may have longer or shorter warranty periods, so please confirm with our sales team before placing your order.

Do you supply spare parts?

Customers can purchase consumable parts together with the machine. For any future replacement, we provide genuine parts at cost price. Parts will be shipped via international express, usually arriving within 7–10 days.

Do you have international certifications?

All our products have CE certification and meet international standards. If you require additional certifications, please consult with our sales team for detailed information.

Can the machine be customized?

Yes, we support OEM/ODM customization including engine brand, color, attachments, and specifications etc.
