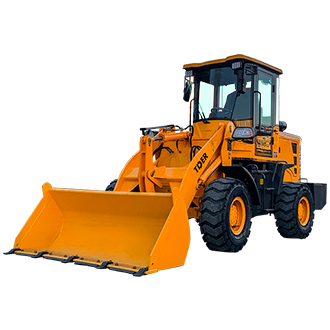

1 Ton Wheel Loader
ZT910
Features
Agricultural Wheel Loader for Farm Applications
Designed for agricultural and rural applications, this machine is ideal for farm material handling, feed loading, silage transport, and uneven terrain operations, and it can be optionally equipped with steel wire tires for enhanced durability and puncture resistance in harsh working environments, ensuring stable performance in compact and demanding job sites.
EPA Tier 4 & Euro V Compliant
Engine options meet EPA Tier 4 and Euro V emission standards, delivering efficient power output, reduced fuel consumption, and compliance with international environmental regulations.
High Productivity Working System
Hydraulic system, bucket geometry, and powertrain are engineered as an integrated system to deliver faster cycle times, improved loading efficiency, and consistent performance under continuous operation.
Operator Comfort & Safety Package
Optional air conditioning, heater, and rearview camera enhance operator comfort and situational awareness, improving productivity while reducing fatigue in extreme working conditions.
Electric Coupler Attachment System
Optional electric quick coupler allows fast and efficient attachment changes, supporting auger, hydraulic breaker, lifting boom, forks, and multiple work tools, significantly increasing machine utilization and enabling one machine for multiple jobsite applications
High Capacity Bucket Option
Optional 1.0–1.2m³ bucket increases material handling volume per cycle, improving productivity and reducing loading time in agricultural and construction applications.
Specifications
| Rated Load | kg | 1000 |
| Bucket Width | mm | 1750 |
| Bucket Capacity | m³ | 0.8 |
| Overall Dimension | mm | 5600*1810*2750 |
| Operating Weight | kg | 3000 |
| Max. Dumping Height | mm | 2900 |
| Max. Dumping Distance | mm | 900 |
| Wheel Base | mm | 1900 |
| Wheel Tread | mm | 1350 |
| Engine | Yunnei | |
| Rated Power | kw | 42 |
| Rated Speed | r/min | 2200 |
| Tire Size | 20.5-16 |
Product Showcase
Why Choose TDER?
20+ Years of Expertise
158 Countries Served
42,000㎡ of Advanced Production
Over $91M+ Annual Sales
